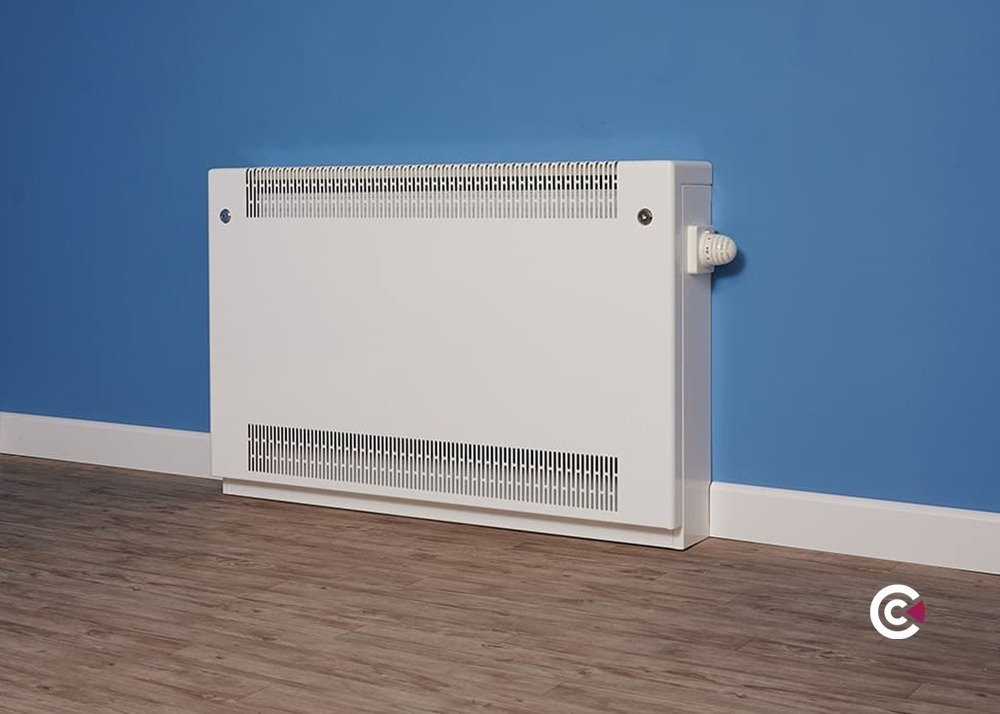

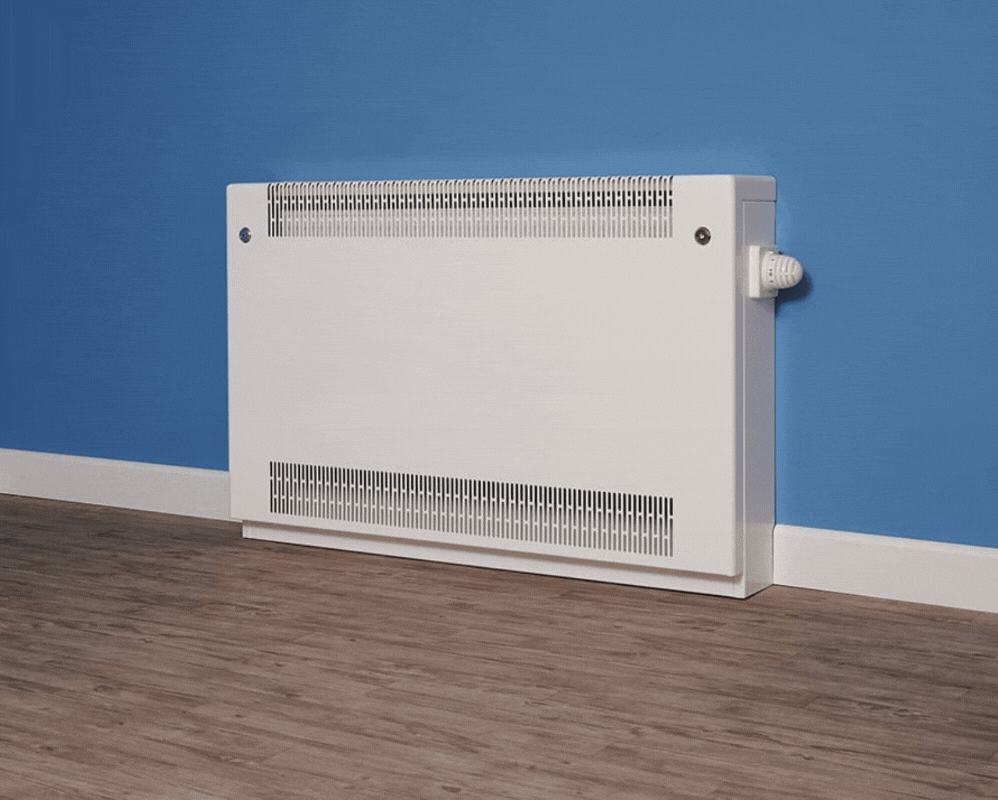

DeepClean - Triple Fin LST - Radiator Cover

All our radiator covers incorporate antimicrobial technology as standard to ensure hygiene and user protection. A revolutionary LST radiator that improves cleaning efficiency by allowing access to every internal and external surface. For environments that require a higher heat output but are compromised on space, the Triple Fin LST radiator offers considerably more heat output at a similar height to a double fin.

Download Product Information
contour-deepclean-floor-mounted-flat-top
contour-floor-mounted-flat-top-deepclean
contour-floor-mounted-flat-top-deepclean-open
contour-floor-mounted-flat-top-deepclean-front
contour-floor-mounted-flat-top-deepclean-side
contour-deepclean-floor-mounted-flat-top
contour-floor-mounted-flat-top-deepclean
contour-floor-mounted-flat-top-deepclean-open
contour-floor-mounted-flat-top-deepclean-front
contour-floor-mounted-flat-top-deepclean-side

Key Features

Whether it’s the full drop down door or the ‘pencil proof grilles’, the DeepClean LST Radiator boasts numerous benefits to the user. Combined with its BioCote® anti-microbial technology and optional rotatory valve kits, these make for the perfect solution in hygiene control.

Radius corners make it safer if someone falls against the unit.
Powder coated inside & outside with Biocote® protection on models finished in RAL 9003 White. Other colours are available.
Made from 1.5mm Zintec steel - gives strength and robustness. 2mm thick casings available for mental health and other secure facility applications. Casings also available in Magnelis for wet and humid areas.
Pencil Proof grilles, punched directly from the guard for ease of cleaning.
Casings up to 2m in length are mostly supplied in one piece - no site assembly required (some casings under 2m may require a split dependant on height and depth.)

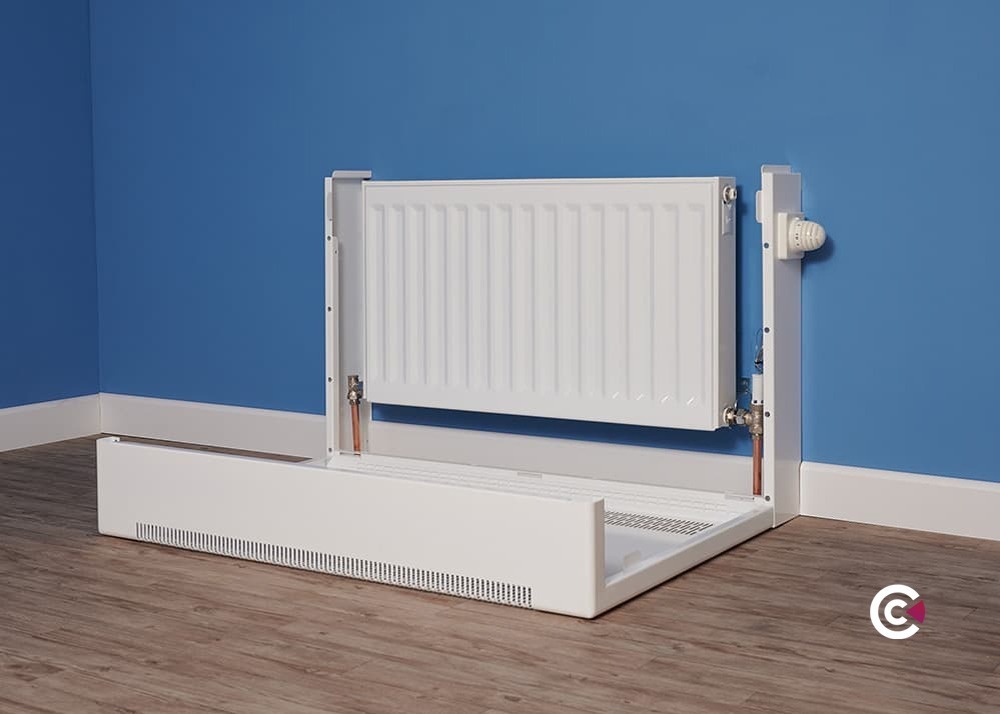

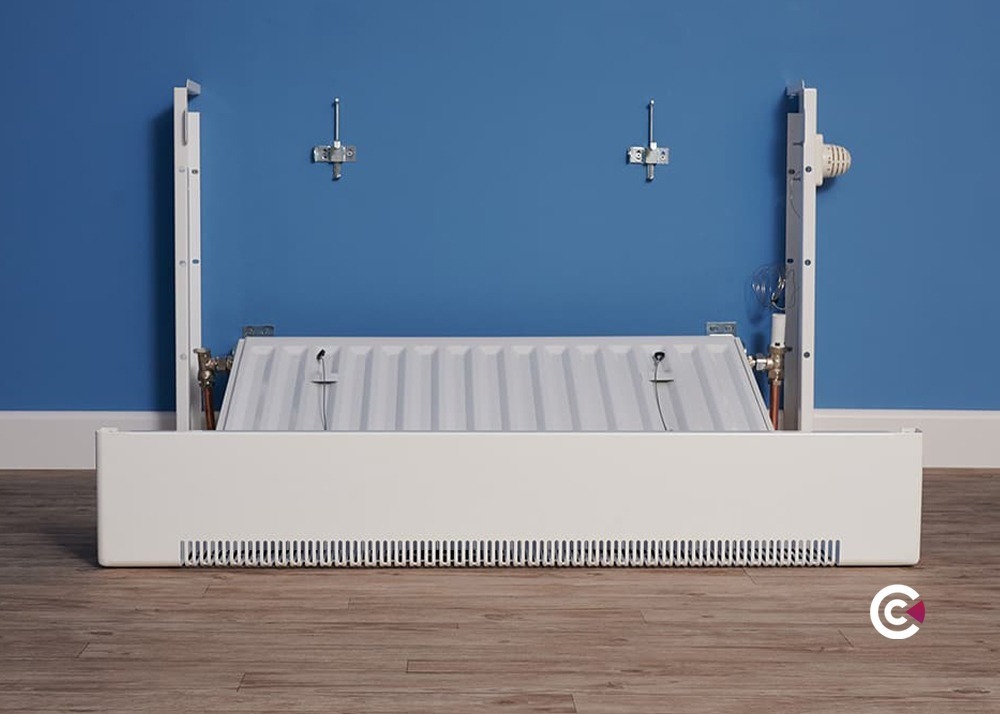

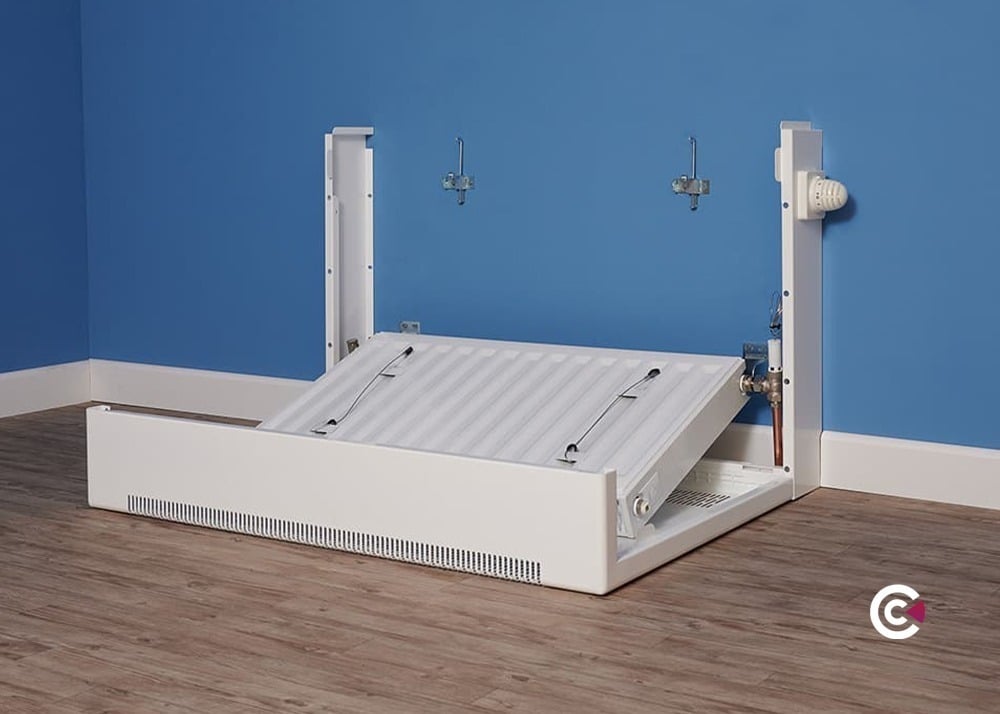

Full drop down/removable door, allows full access for cleaning to maintain hygiene and heating efficiency in all environments.
External TRVs available

Technical Data

Manufacture

  • 1.5mm Zintec steel
  • 10mm Radius edges / bullnose corners
  •  Patented full height front access door with hinge
  • (Pat. No. 2 410 544)
  •  5.5mm Punched grille
  • Cut-outs programmed into manufacture

Specification

Emitter
  • Ultraheat Compact TS steel panel radiators

Valve Options Available
  • Internal TRV kit 9210-13
  • Internal TRV kit 9210-13
  • External TRV kit 9330-41
  • Remote sensing TRV kit 7463-41

Finish
  • Polyester powder coated RAL 9003 as standard. Other colour finishes available.
  • Patented BioCote® anti-microbial agent as standard.

Fixings
  • All fixings internal
  • 6mm Allen key door

Sizing & Heat Outputs

Sizing
  • Single casing length 600mm to 2000mm
  • Single casing height 450mm to 1150mm
  • Lengths over 2000mm can be achieved due to the modular design
  • Bespoke solutions available

Heat Outputs

Heat outputs to BS EN 442 Certification.
Outputs based on a mean radiator water temperature of 70°C and a room temperature of 20°C - Delta T 50°C
To achieve Delta T60 increase T50 figure by 20.5%

To calculate alternative Delta T requirements please refer to page 103 of the LST & Anti-Ligature Radiators & Guards brochure.

To convert BTU to Watts, multiply by 0.293. To convert Watts to BTU divide by 0.293

Standard Delivery

  • Standard delivery comprises radiator guard of choice, corresponding Ultraheat Compact TS emitted and the option of a 90degree Hertz ½” valve kit (suitable for 15mm copper to copper connection on a two-pipe system)
  • Alternative valve patterns and sizes are available upon request
  • Split delivery* option: to reduce the risk of radiator casings becoming damaged or lost on site, Contour offer split deliveries as standard on all LST radiators. Radiators and valves are delivered first then once the heating system is installed, tested and commissioned, casings are delivered. This virtually eliminates storage problems and the risk of on-site damage.

    *Additional carriage charges will apply for multiple phases *

Colour Options Available

White

RAL 9003

Oyster White

RAL 1013

Tele Grey

RAL 7047

Mint Green

RAL 6029

Ultramarine

RAL 5002

Jet Black

RAL 9005

FAQ

What colour options are available for radiators and guards?

You have the full RAL colour chart to choose from, offering a colour spectrum of 1625 shades.

Contour covers come as standard in Ral 9003 with Biocote protection.

Common colours for Contour LST radiators are:

  • White (RAL 9003)
  • Oyster White (RAL 1013)
  • Tele Grey (RAL 7047)
  • Jet Black (RAL 9005)
  • Traffic Red (RAL 3020)
  • Mint Green (RAL 6029)
  • Zinc Yellow (RAL 1018)
  • Ultra Marine Blue (RAL 5002)
  • Blue Lilac (RAL 4005)
  • Azure Blue (RAL 5009)
