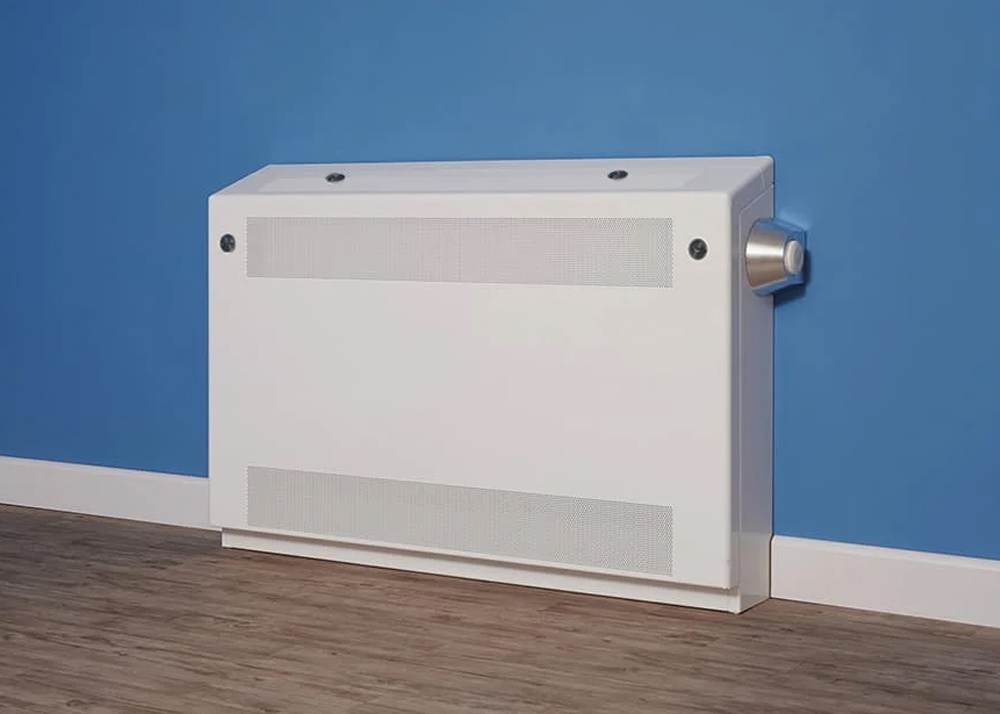

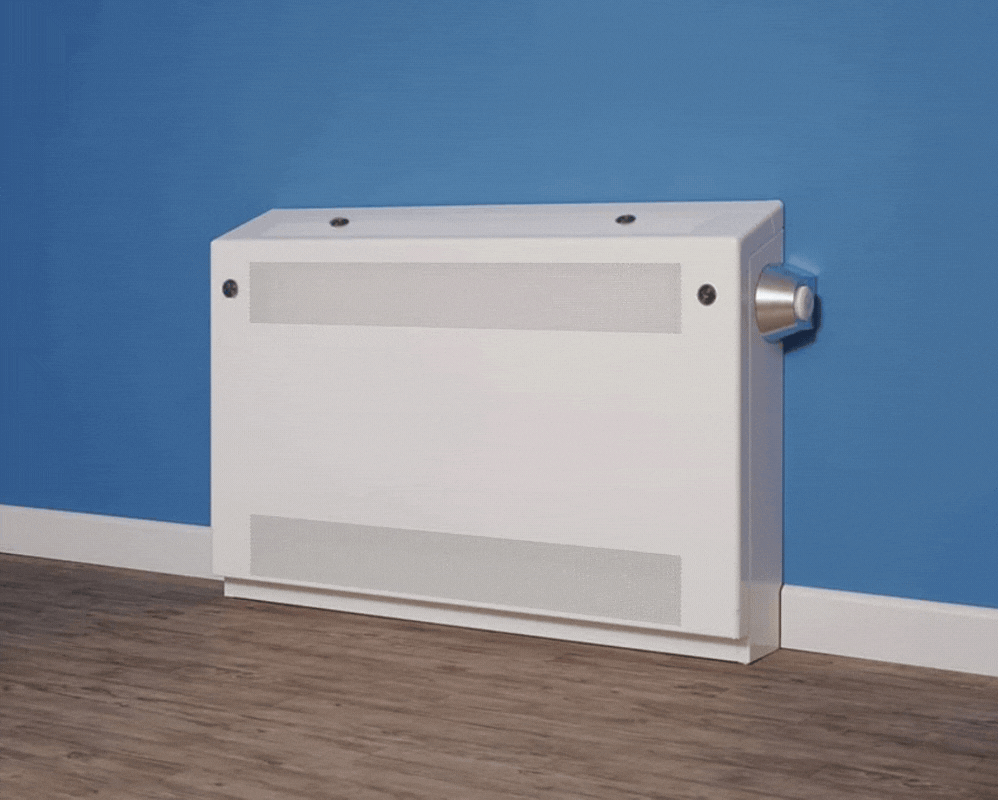

DeepClean Extra - Floor Mounted - Sloping Top

Radiators with a low surface temperature (LST) protect vulnerable people from the dangers of hot surface heating. A specialist LST heating solution designed and engineered for installation in secure environments, to minimise the risk of self-harm. This option has robust fixings, ideal for high-traffic areas such as corridors. A sloping top is a hygienic option which minimises dust buildup. Great for schools as it stops the radiator from being used as a shelf or seat. We always recommend a sloping top with anti-ligature radiators.

Download Product Information Install Guide
contour-deepclean-extra-floor-mounted-sloping-top
contour-deepclean-extra-floor-mounted-sloped-top-open-
deepclean-floor-mounted-sloping-top-extra
deepclean-extra-floor-mounted-sloping-top-
deepclean-extra-floor-mounted-sloping-top--
contour-deepclean-extra-floor-mounted-sloping-top
contour-deepclean-extra-floor-mounted-sloped-top-open-
deepclean-floor-mounted-sloping-top-extra
deepclean-extra-floor-mounted-sloping-top-
deepclean-extra-floor-mounted-sloping-top--

Key Features

Whether it’s the full drop down door or the IP3x grilles, the DeepClean Extra Radiator boasts numerous benefits to the user. Combined with its BioCote® anti-microbial technology and optional rotatory valve kits, these make for the perfect solution in hygiene control.

Radius edges and bullnose corners protect in the event of a slip or fall, and prevents edges being used for self-harm.
1.5-2mm Zintec Steel construction ensures robust performance in the most demanding of environments.
Magnelis Steel can be chosen for wet and humid environments such as ensuite bathrooms.
An array of security fastenings which include Pin Hex and key locks can be used to ensure fast and simple access for staff but prevent unwanted opening by service users.
All wall and floor fixing points are located internally to protect against non-permitted access, removal or manipulation.
Two piece design allows for the frame to be sealed to the wall, whilst still allowing full access for cleaning through the drop down door.

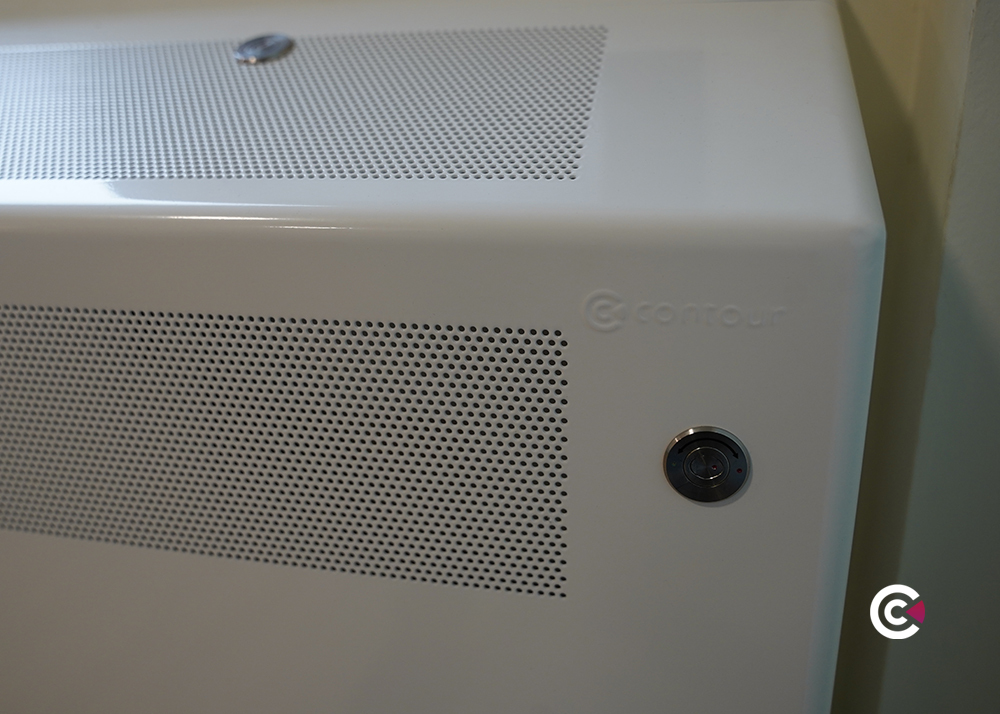

The IP3X rated grille, with 2mm holes at 4mm centres, prevents items being passed through the casing and reduces ligature points, whilst still allowing for ventilation to maximise heat output.

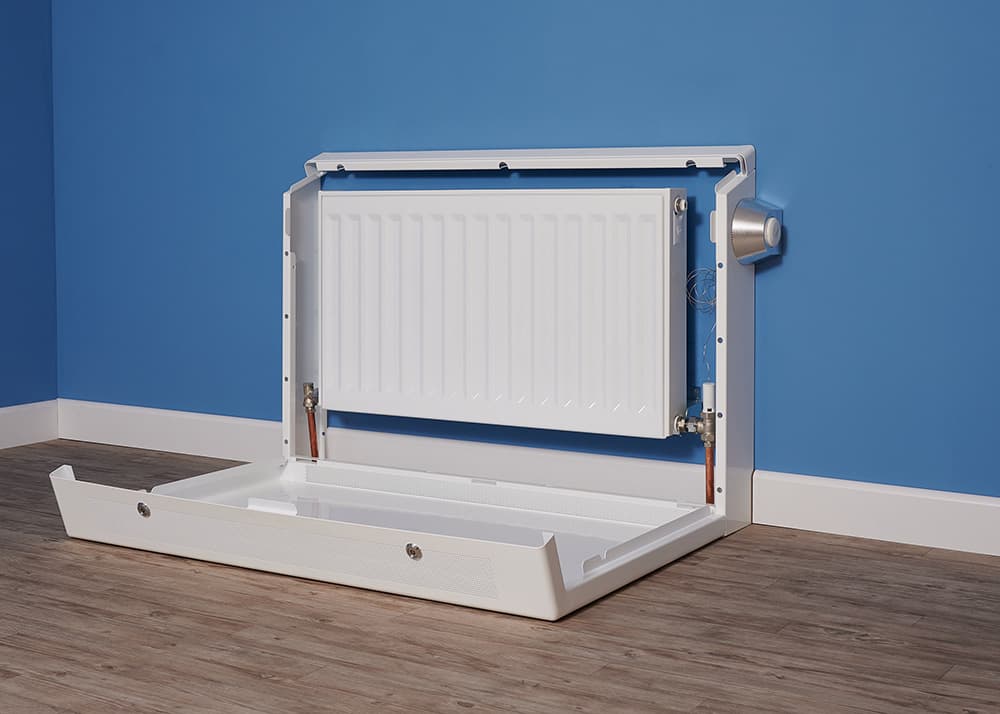

Full drop down/removable door, allows full access for cleaning to maintain hygiene and heating efficiency in all environments.
A tapered, precision engineered, thermostatic radiator valve shroud which reduces the opportunity for the TRV to be used as an anchor point.



Watch the DeepClean Extra product review

DeepClean Extra is a specialist range of anti-ligature heating solutions designed and engineered to minimise the risk of self-harm. Designed for installation in secure environments, such as mental health facilities, prisons, SEN Schools, custody and remand units.

Watch our National Sales Manager Richard Holland introduce the unique features of the DeepClean Extra range.

Technical Data

Manufacture

  • Full frame construction
  • 1.5mm Zintec steel
  • 10mm Radius edges / bullnose corners
  • Patented full height front access door with hinge (Pat. No. 2 410 544)
  • IP3x test (to BS EN 60529) compliant guard grille available - designed to stop objects >2.5mm diameter being inserted
  • Cut-outs programmed into manufacture

Specification

Emitter
  • Compact steel panel radiators. EN 442 tested and certified
  • Operating pressure 10 bar -(tested to 13 bar/188PSI)
Valve Options Available
  • Internal TRV kit 9210-13
  • Remote sensing TRV kit 7463-41
  • External Back to Wall Anti-Ligature TRV kit 19352-41
  • Rotarad rotating valve kit:
    RR04 Single Fin/ RR05 Half Fin/ RR06 Double Fin (not suitable for Triple Fin radiators)
  • Alternative valve patterns and sizes are available upon request
Finish
  • Polyester powder coated RAL 9003 as standard. Other colour finishes available
  • Patented BioCote® anti-microbial agent as standard
Fixings
  • All fixings internal
  • 8mm Pinhex Locks

Sizing & Heat Outputs

Sizing
  • Single casing length 600mm to 2000mm
  • Single casing height 600mm to 1200mm
  • Lengths over 2000mm can be achieved but will be modular design so some assembly required on site
  • Bespoke solutions available
Heat Outputs

Heat outputs to BS EN 442 Certification.
Outputs based on a mean radiator water temperature of 70°C and a room temperature of 20°C - Delta T 50°C
To achieve Delta T60 increase T50 figure by 20.5%

To calculate alternative Delta T requirements please refer to page 103 of the LST & Anti-Ligature Radiators & Guards brochure.

To convert BTU to Watts, multiply by 0.293. To convert Watts to BTU divide by 0.293

Optional Extras

  • Magnelis for wet rooms
  • Different gauges of material available
  • Strengthening struts
  • Door cables

Standard Delivery

  • Standard delivery comprises radiator guard of choice, corresponding Compact emitter (Single Fin, Half Fin, Double Fin and Triple Fin as specified) and the option of a 90 degree Herz ½” valve kit (suitable for 15mm copper to copper connection on a two-pipe system)
  • An optional Rotarad rotary valve is available (not suitable for Triple Fin radiators)
  • Split delivery* to reduce the risk of radiator casings becoming damaged or lost on site, Contour offer split deliveries as standard on all LST radiators. Radiators and valves are delivered first then once the heating system is installed, tested and commissioned; casings are delivered. This virtually eliminates storage problems and the risk of on-site damage.

    *Additional carriage charges will apply for multiple phases

Colour Options Available

White

RAL 9003

Oyster White

RAL 1013

Tele Grey

RAL 7047

Mint Green

RAL 6029

Ultramarine

RAL 5002

Jet Black

RAL 9005

FAQ

What colour options are available for radiators and guards?

You have the full RAL colour chart to choose from, offering a colour spectrum of 1625 shades.

Contour covers come as standard in Ral 9003 with Biocote protection.

Common colours for Contour LST radiators are:

  • White (RAL 9003)
  • Oyster White (RAL 1013)
  • Tele Grey (RAL 7047)
  • Jet Black (RAL 9005)
  • Traffic Red (RAL 3020)
  • Mint Green (RAL 6029)
  • Zinc Yellow (RAL 1018)
  • Ultra Marine Blue (RAL 5002)
  • Blue Lilac (RAL 4005)
  • Azure Blue (RAL 5009)
