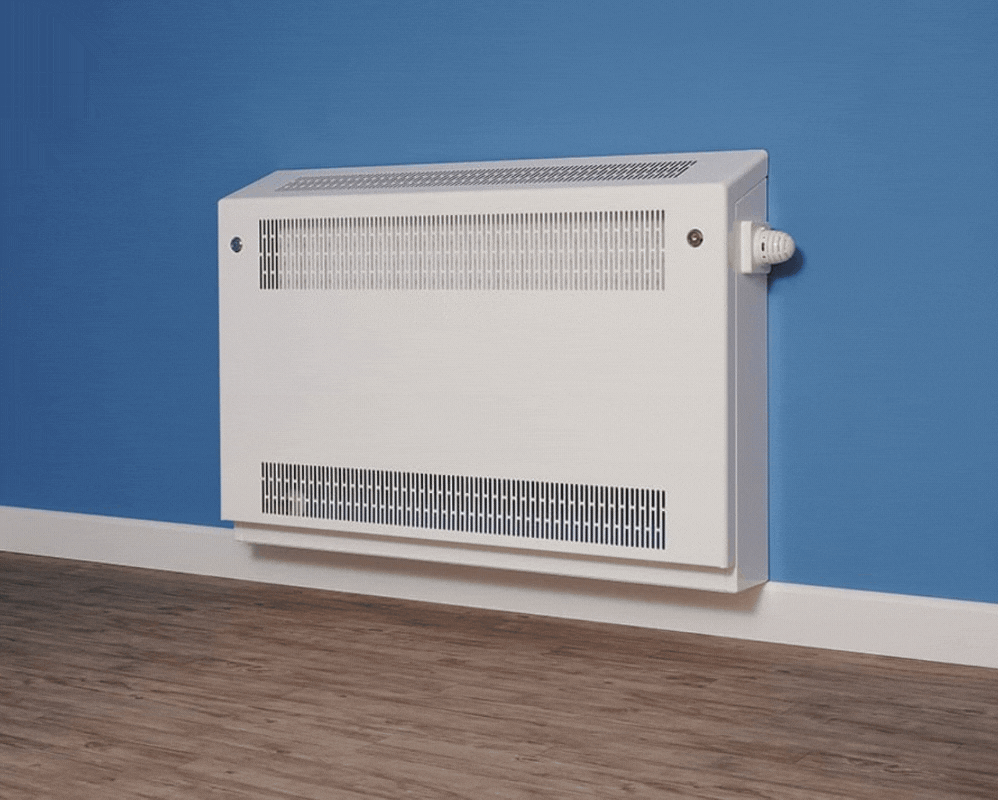

DeepClean - Standard Grilles Wall Mounted-Sloping Top

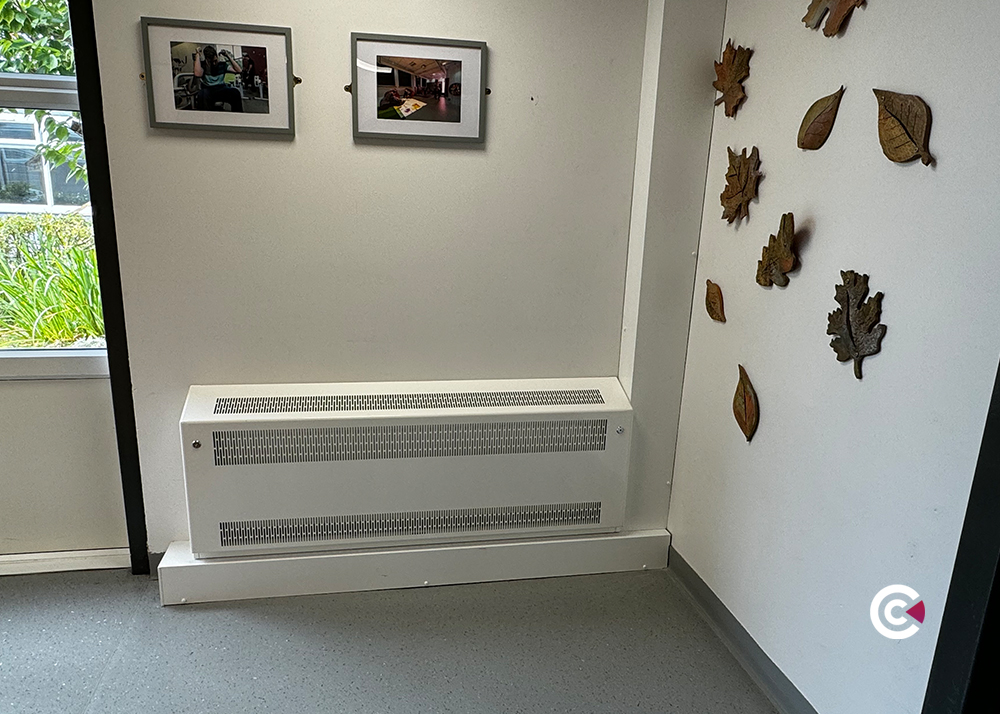

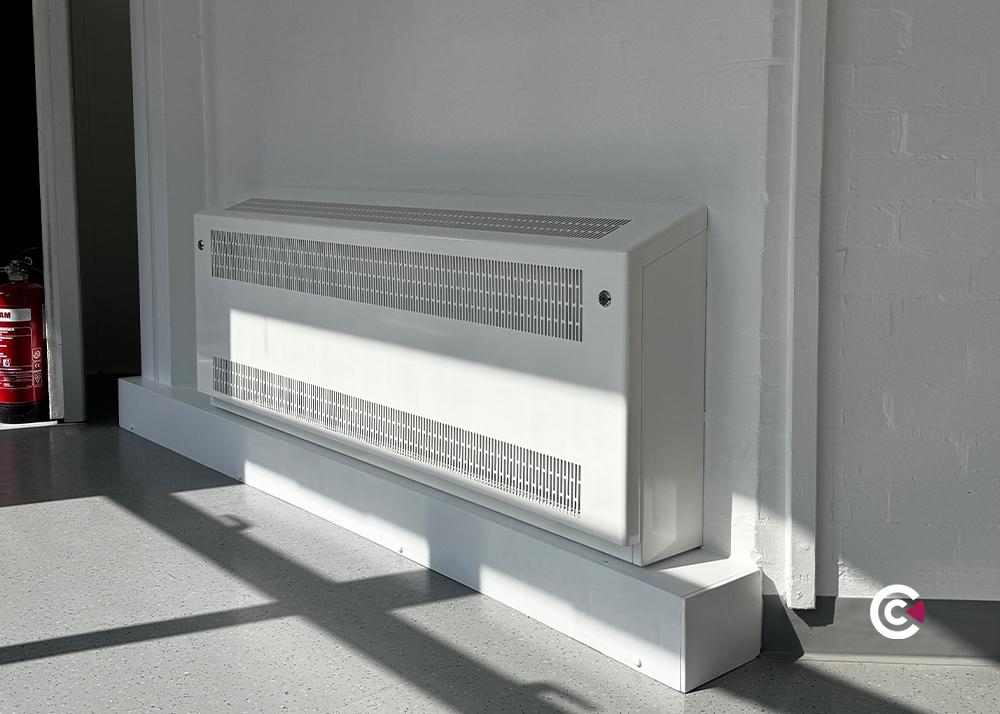

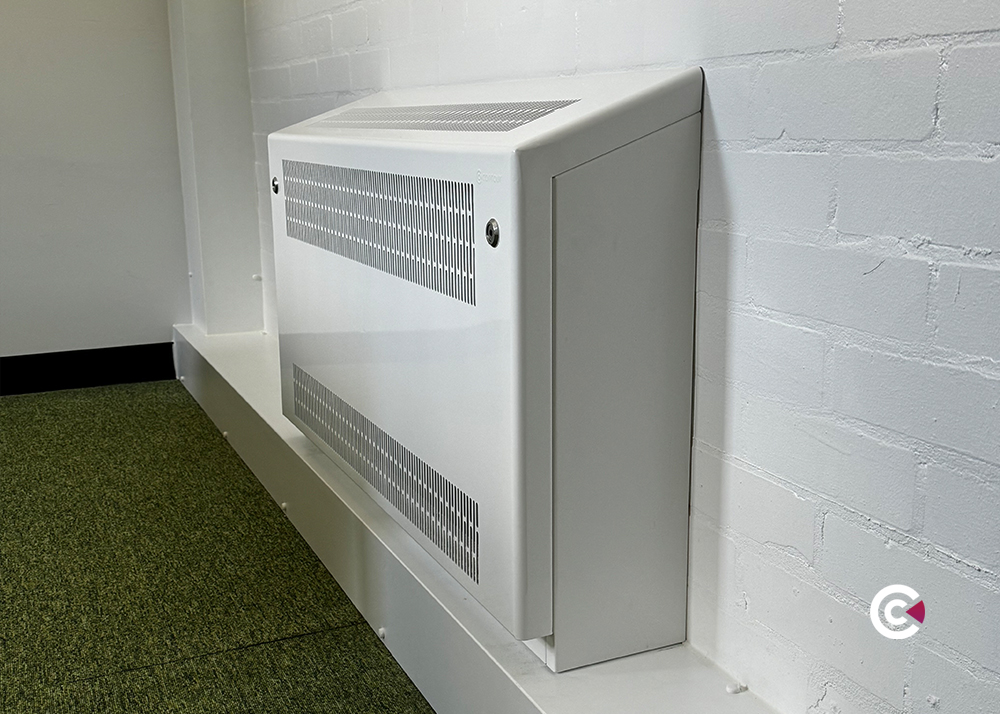

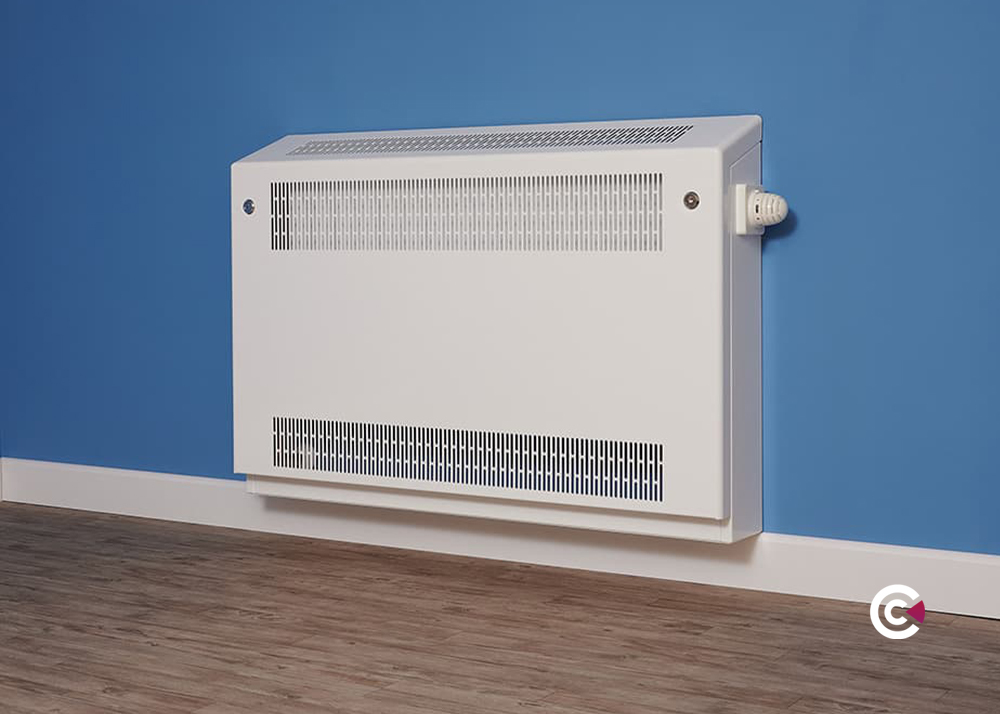

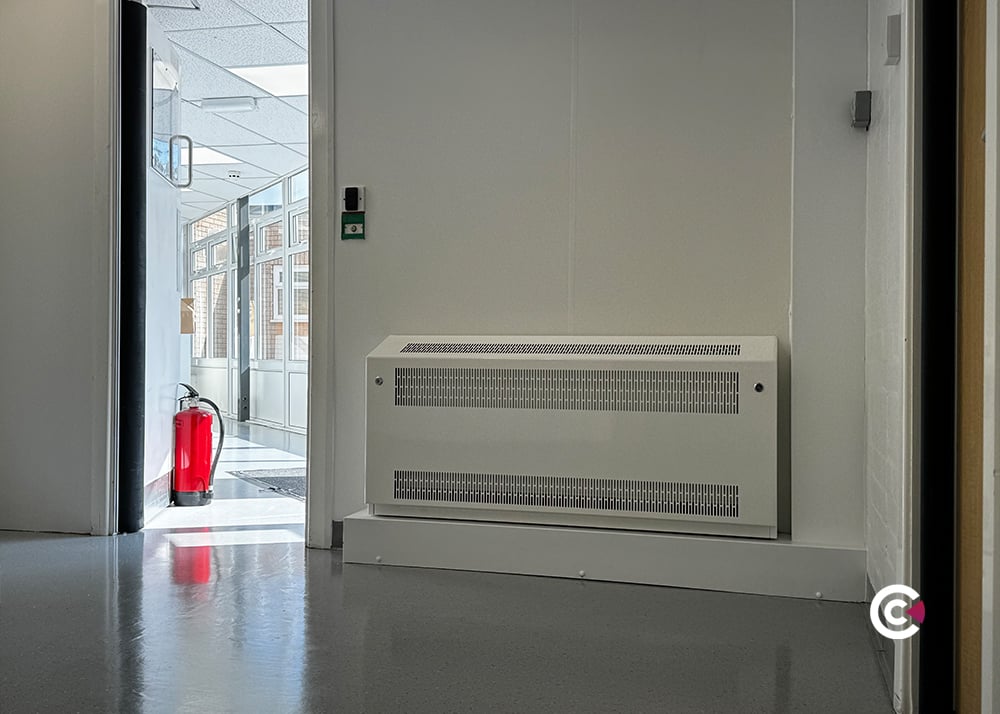

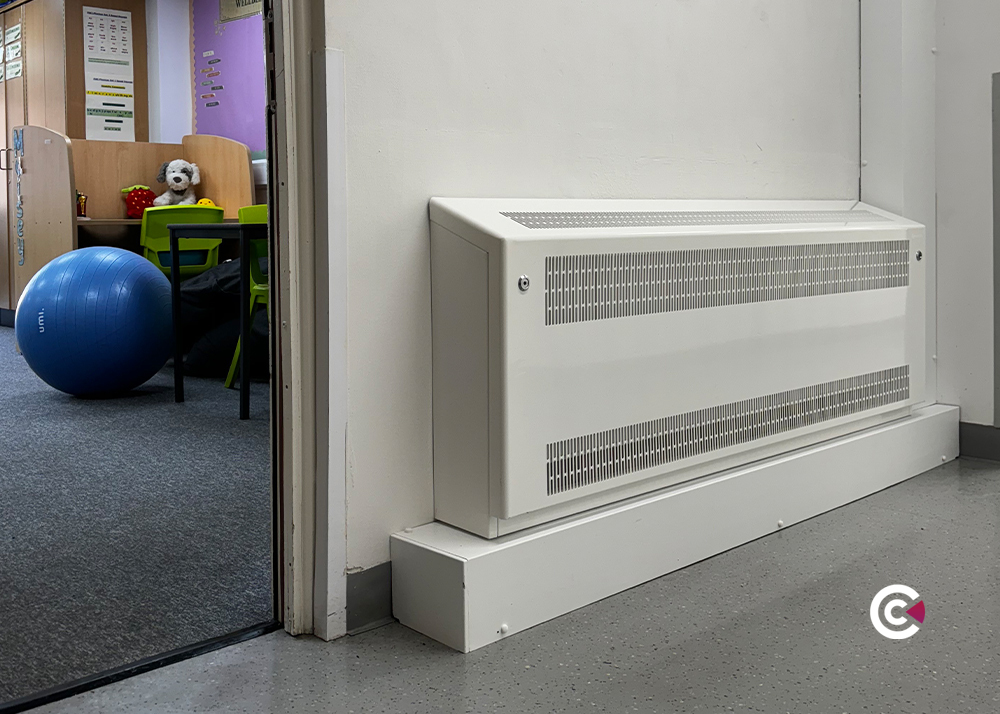

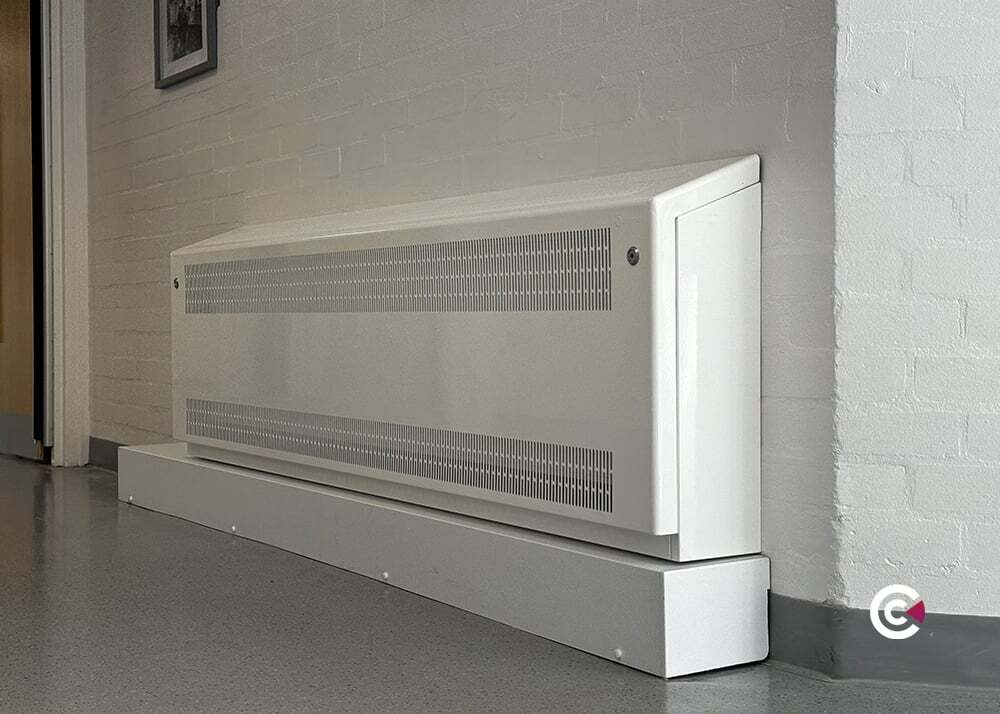

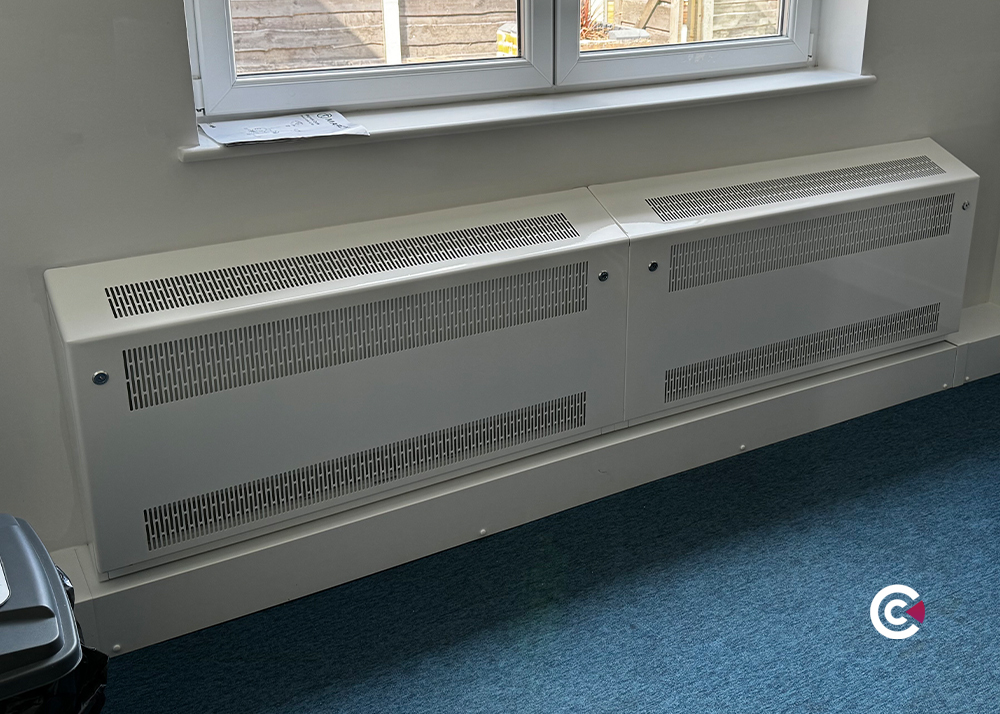

Radiators with a low surface temperature (LST) protect vulnerable people from the dangers of hot surface heating. A revolutionary LST radiator that improves cleaning efficiency by allowing access to every internal and external surface. Wall mounted is recommended if the radiator is sat on pipe boxing. These are beneficial in areas with constant cleaning as you can access underneath the unit. A sloping top is a hygienic option which minimises dust buildup. Great for schools as it stops the radiator from being used as a shelf or seat. We always recommend a sloping top with anti-ligature radiators.

Download Product Information Install Guide
contpur-deepclean-wall-mounted-sloped-top
contour-deepclean-wall-mounted-sloping-top-open

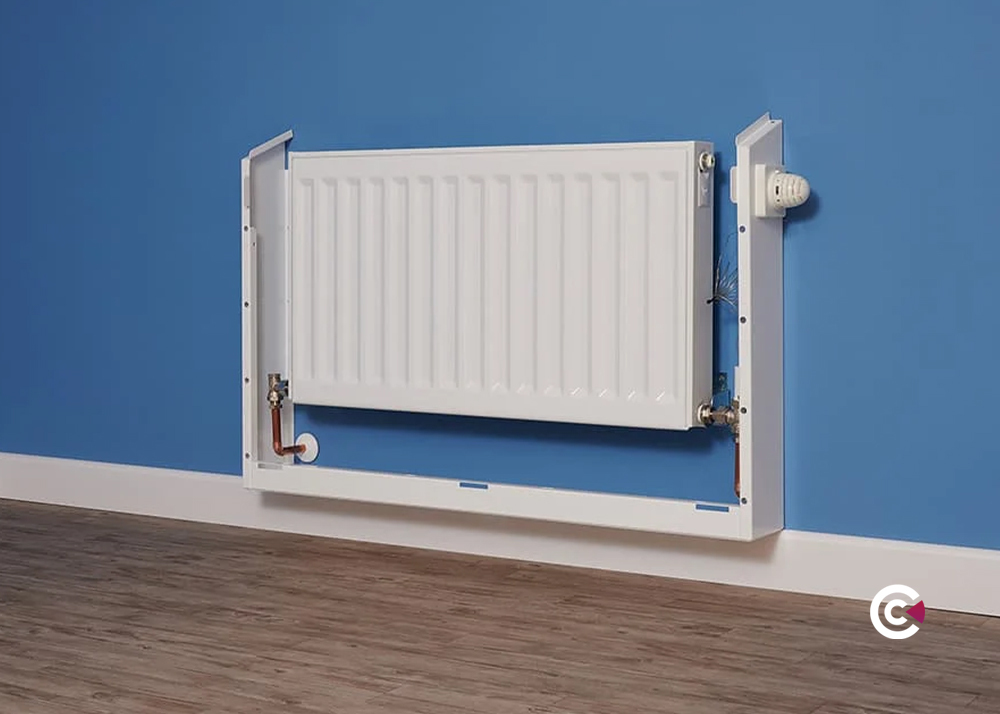

contour-deepclean-wall-mounted-sloping-top-no-cover
deepcleam-wall-mounted-sloping-top-lst-contour-
wall-mounted-sloping-top-deepclean-lst-contour-
contpur-deepclean-wall-mounted-sloped-top
contour-deepclean-wall-mounted-sloping-top-open
contour-deepclean-wall-mounted-sloping-top-no-cover
deepcleam-wall-mounted-sloping-top-lst-contour-
wall-mounted-sloping-top-deepclean-lst-contour-

Key Features

Whether it’s the full drop down door or the ‘pencil proof grilles’, the DeepClean LST Radiator boasts numerous benefits to the user. Combined with its BioCote® anti-microbial technology and optional rotatory valve kits, these make for the perfect solution in hygiene control

Radius corners make it safer if someone falls against the unit.
Powder coated inside & outside with Biocote® protection on models finished in RAL 9003 White. Other colours are available.

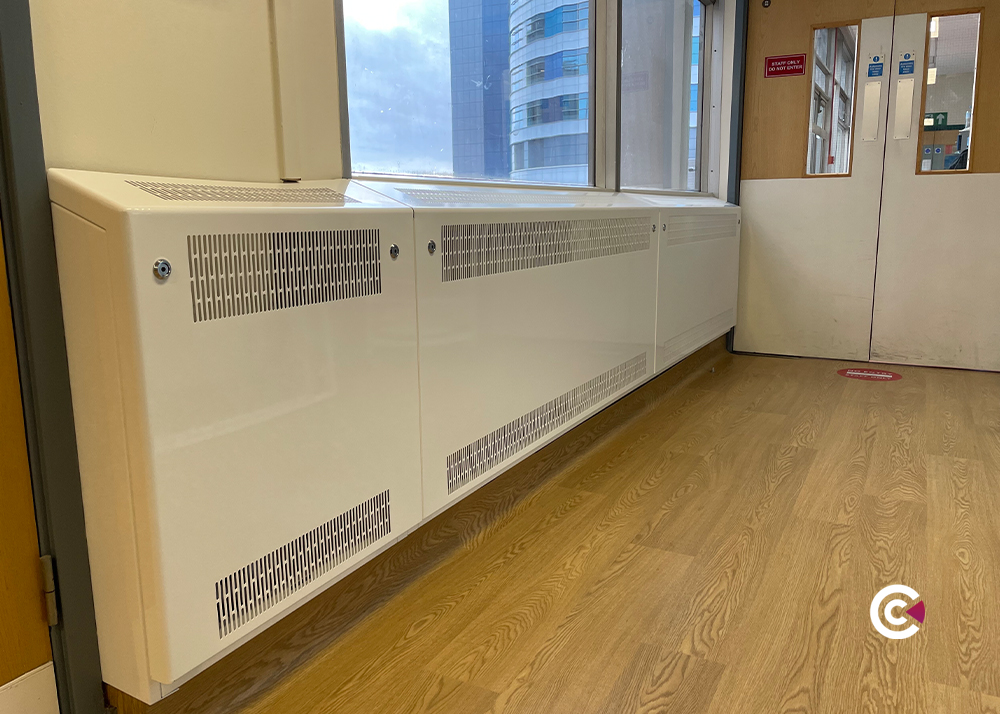

Made from 1.5mm Zintec steel - gives strength and robustness. 2mm thick casings available for mental health and other secure facility applications. Casings also available in Magnelis for wet and humid areas.
Pencil Proof grilles, punched directly from the guard for ease of cleaning.
Casings up to 2m in length are mostly supplied in one piece - no site assembly required (some casings under 2m may require a split dependant on height and depth.)

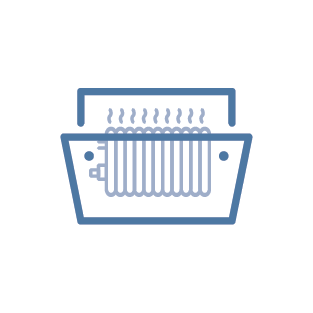

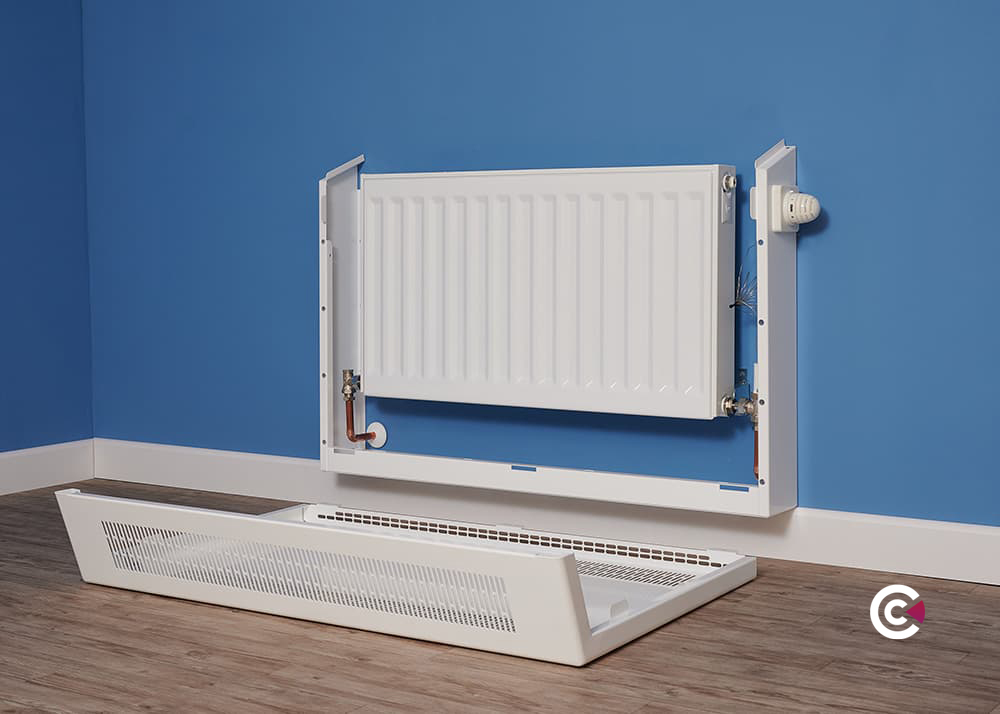

Full drop down/removable door, allows full access for cleaning to maintain hygiene and heating efficiency in all environments.
External TRVs available

Technical Data

Manufacture

  • 1.5mm Zintec steel
  • 10mm Radius edges / bullnose corners
  • Patented full height front access door with hinge (Pat. No. 2 410 544)
  • 5.5mm Punched grille
  • Cut-outs programmed into manufacture
    Base Plate to underside of cover

Specification

Emitter
  • Compact steel panel radiators. EN 442 tested and certified
  • Operating pressure 10 bar -(tested to 13 bar/188PSI)
Valve Options Available
  • Internal TRV kit 9210-13
  • External TRV kit 9330-41
  • Remote sensing TRV kit 7463-41
  • Anti-Ligature TRV kit 19352-41
  • Rotarad rotating valve kit:
    RR04 Single Fin/ RR05 Half Fin/ RR06 Double Fin (not suitable for Triple Fin radiators)
  • Alternative valve patterns and sizes are available upon request
Finish
  • Polyester powder coated RAL 9003 as standard. Other colour finishes available
  • Patented BioCote® anti-microbial agent as standard
Fixings
  • All fixings internal

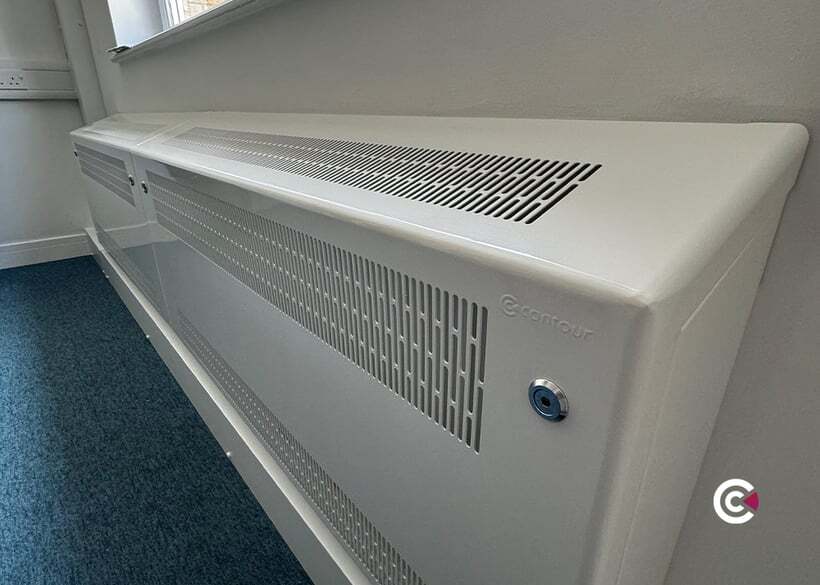

  • 6mm Allen key door locks as standard
  • Other secure options available

Sizing & Heat Outputs

Sizing
  • Single casing length 600mm to 2000mm
  • Single casing height 550mm to 1150mm
  • Lengths over 2000mm can be achieved but will be modular design so some assembly required on site
  • Bespoke solutions available
Heat Outputs

Heat outputs to BS EN 442 Certification.
Outputs based on a mean radiator water temperature of 70°C and a room temperature of 20°C - Delta T 50°C
To achieve Delta T60 increase T50 figure by 20.5%

To calculate alternative Delta T requirements please refer to page 103 of the LST & Anti-Ligature Radiators & Guards brochure.

To convert BTU to Watts, multiply by 0.293. To convert Watts to BTU divide by 0.293

Optional Extras

  • Magnelis for wet rooms
  • Different guages of material available
  • Strengthening struts
  • Door cables

Standard Delivery

  • Standard delivery comprises radiator guard of choice, corresponding Compact emitter (Single Fin, Half Fin, Double Fin and Triple Fin as specified) and the option of a 90 degree Herz ½” valve kit (suitable for 15mm copper to copper connection on a two-pipe system)
  • An optional Rotarad rotary valve is available (not suitable for Triple Fin radiators)
  • Split delivery* to reduce the risk of radiator casings becoming damaged or lost on site, Contour offer split deliveries as standard on all LST radiators. Radiators and valves are delivered first then once the heating system is installed, tested and commissioned; casings are delivered. This virtually eliminates storage problems and the risk of on-site damage.

    *Additional carriage charges will apply for multiple phases

Colour Options Available

White

RAL 9003

Oyster White

RAL 1013

Tele Grey

RAL 7047

Mint Green

RAL 6029

Ultramarine

RAL 5002

Jet Black

RAL 9005

FAQ

What colour options are available for radiators and guards?

You have the full RAL colour chart to choose from, offering a colour spectrum of 1625 shades.

Contour covers come as standard in Ral 9003 with Biocote protection.

Common colours for Contour LST radiators are:

  • White (RAL 9003)
  • Oyster White (RAL 1013)
  • Tele Grey (RAL 7047)
  • Jet Black (RAL 9005)
  • Traffic Red (RAL 3020)
  • Mint Green (RAL 6029)
  • Zinc Yellow (RAL 1018)
  • Ultra Marine Blue (RAL 5002)
  • Blue Lilac (RAL 4005)
  • Azure Blue (RAL 5009)
