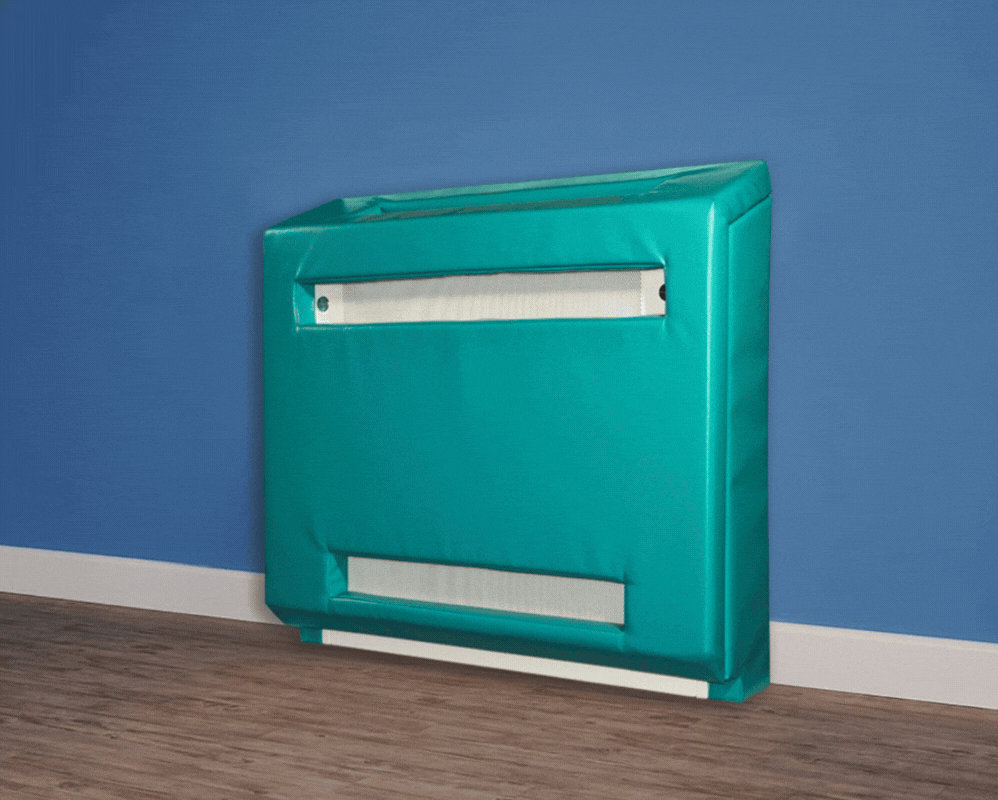

Padded Radiator Cover

Ensuring safe heating in public spaces is crucial, particularly in environments catering to vulnerable individuals. Traditionally, LST (Low Surface Temperature) or Anti-Ligature Radiators have been the go-to solutions. However, these may not be ideal for every setting.

In areas designed for children, infants, or those in SEND (Special Educational Needs and Disabilities), SEN (Special Educational Needs), ASN (Additional Support Needs), ALN (Additional Learning Needs), and PRU (Pupil Referral Units) environments, the primary safety concern is preventing accidental collisions with objects. For these settings, soft surfaces are essential.

DeepClean_Padded_Radiator_Cover_Image_1
DeepClean_Padded_Radiator_Cover_Image_3
DeepClean_Padded_Radiator_Cover_Image_4
DeepClean_Padded_Radiator_Cover_Image_7
DeepClean_Padded_Radiator_Cover_Image_8
DeepClean_Padded_Radiator_Cover_Image_1
DeepClean_Padded_Radiator_Cover_Image_3
DeepClean_Padded_Radiator_Cover_Image_4
DeepClean_Padded_Radiator_Cover_Image_7
DeepClean_Padded_Radiator_Cover_Image_8

Key Features

Contour's innovation in safe heating solutions has empowered us to collaborate with NHS trusts to design and develop soft padded radiator covers that ensure full accessibility. Our radiator covers significantly enhance physical safety, particularly benefiting environments with Special Educational Needs (SEN), Special Educational Needs and Disabilities (SEND), Additional Support Needs (ASN), and Additional Learning Needs (ALN). These solutions are also ideal for Pupil Referral Units (PRU), providing superior safety without compromising hygiene standards.

Enhanced Safety: Our padded radiator cover offers an extra layer of protection, making it ideal for schools, nurseries, care homes, playrooms, bathrooms, and sensory rooms. The 45mm thick foam padding provides added safety without compromising on durability.

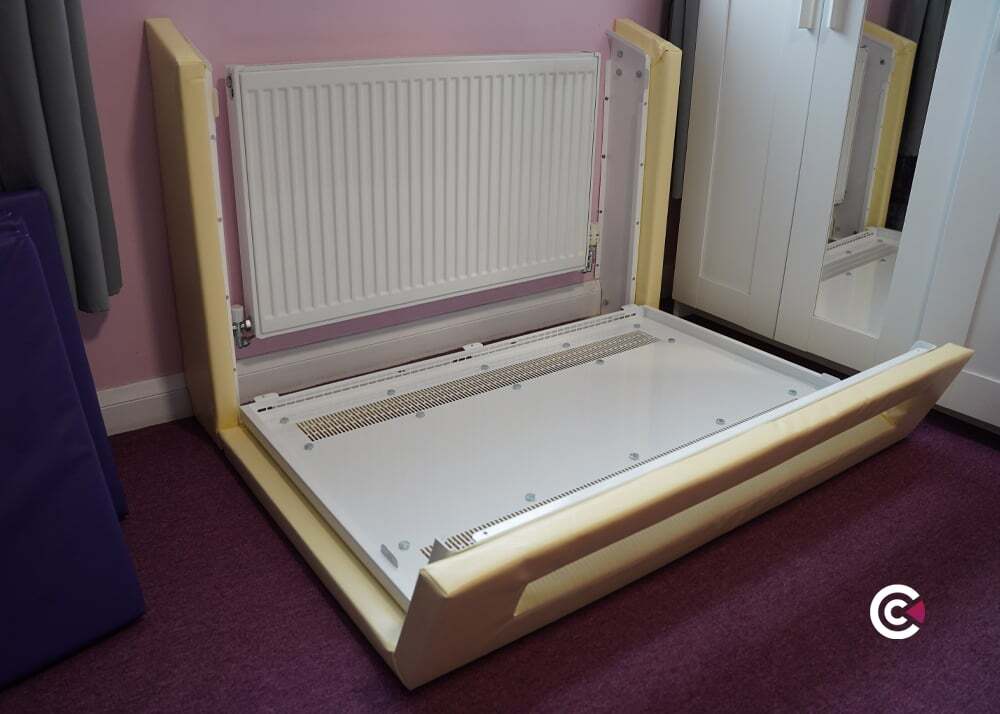

Accessibility: We prioritise accessibility and ease of maintenance. Our DeepClean Padded Radiator Covers feature compression locks, allowing full access for cleaning and maintenance while ensuring the safety of vulnerable individuals.

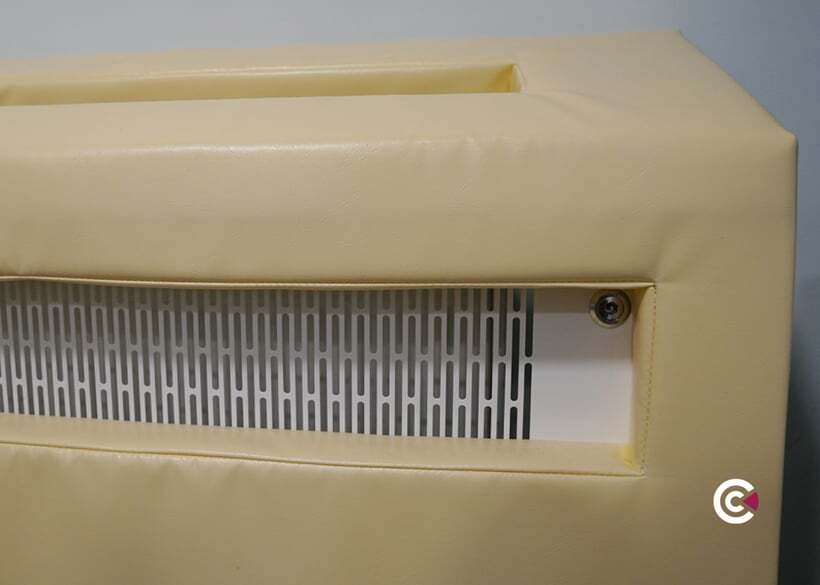

Customisation: Every environment is unique, and our padded radiator covers are tailored to meet your specific requirements. Choose from a range of grille options, including pencil-proof or anti-ligature designs, to suit your needs. Additionally, the opening for the grilles can be customised or removed as per your preferences.
Durable Construction: Crafted from high-quality materials, our covers are built to last. The 6mm MDF wood backboard, 38mm 50kg/m³ foam, and 600gsm vinyl covering ensure longevity and resilience. The vinyl is flame-resistant and also easy to clean with an anti-fungal finish, maintaining hygiene and safety standards.
Versatile Design: Whether you prefer a sloping or flat top design, our padded radiator covers are available in both options. Plus, each cover is made to measure, ensuring a perfect fit for your space.

Technical Data

Manufacture

  • 1.5mm Zintec steel
  • 10mm Radius edges / bullnose corners
  • Patented full height front access door with hinge (Pat. No. 2 410 544)
  • 5.5mm Punched grille
  • 45mm foam padding
  • Cut-outs programmed into manufacture

Specification

Fixings
  • All fixings internal
  • 6mm Allen key door locks as standard
  • Other secure options available

Finish

Finish
  • Polyester powder coated RAL 9003 as standard
  • A choice of colours for the vinyl available
  • Patented BioCote® anti-microbial agent as standard

Optional Extras

  • Different gauges of material available
  • Strengthening struts
  • Door cables
  • IP3X rated grilles

Colour Options Available

Red

401

Pink

992

Orange

700

Orange

709

Yellow

308

Cream

942

Dark Blue

100

Blue

133

Light Blue

117

Ice Blue

132

Purple

944

Lilac

947

Dark Green

250

Green

216

Light Green

207

Black

Grey

White

910

FAQ

What colours do they come in?

Radiator cover underneath padded will be painted in RAL 9003 White. Padded on top can be from a wide range of colours. Sides and front can be mixed and match to suit environment they are being installed into.


What materials are they made from?

  • 1.5 Zintec steel
  • Padding is 38mm thick 50kgm/3 foam laid on top of 6mm MDF and wrapped in double sides 600gsm vinyl.

What size do they come in?

We can manufacture the padded covers to suit almost any application do to its modular design. As a guid 600mm to 4000mm long is achievable.

Can you still open the cover to gain access to the radiator?

Yes – due to the efforts of the design team, the locks are still on show in order for them to be operated to open the cover.
