DeepClean Extra - Vertical - Sloping Top - Floor to Ceiling

Whilst vertical radiators offer the space-saving advantages that standard LSTs perhaps do not, the standard grilles do pose a ligature risk. This is particularly important to note when working in mental health, challenging and secure environments where Service Users are vulnerable to self-harming tendencies.

With its 2mm holes at 4mm centres punched directly into the radiator guard, the risk of users securing rope or cord around an anchor point is greatly reduced.

Contour’s Vertical Anti-Ligature Radiator comes with BioCote® anti-microbial protection to ensure safety standards for hygiene are met. The presence of the anti-microbial technology offers a 99.99% reduction in bacteria levels in under 2 hours.

Contour have developed two designs of casing for the vertical range.

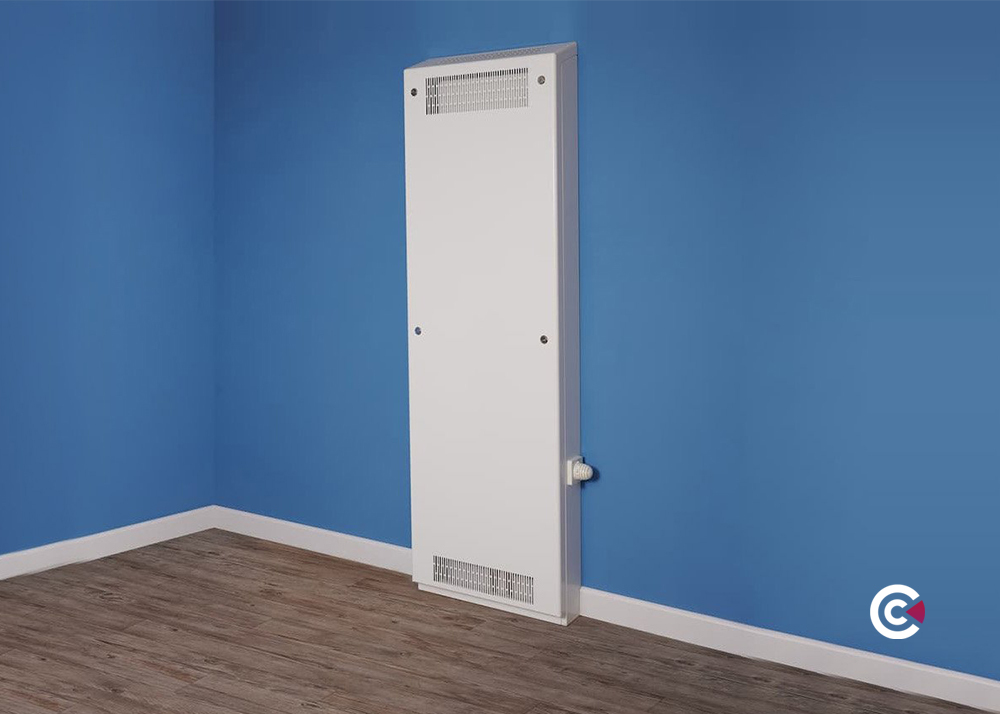

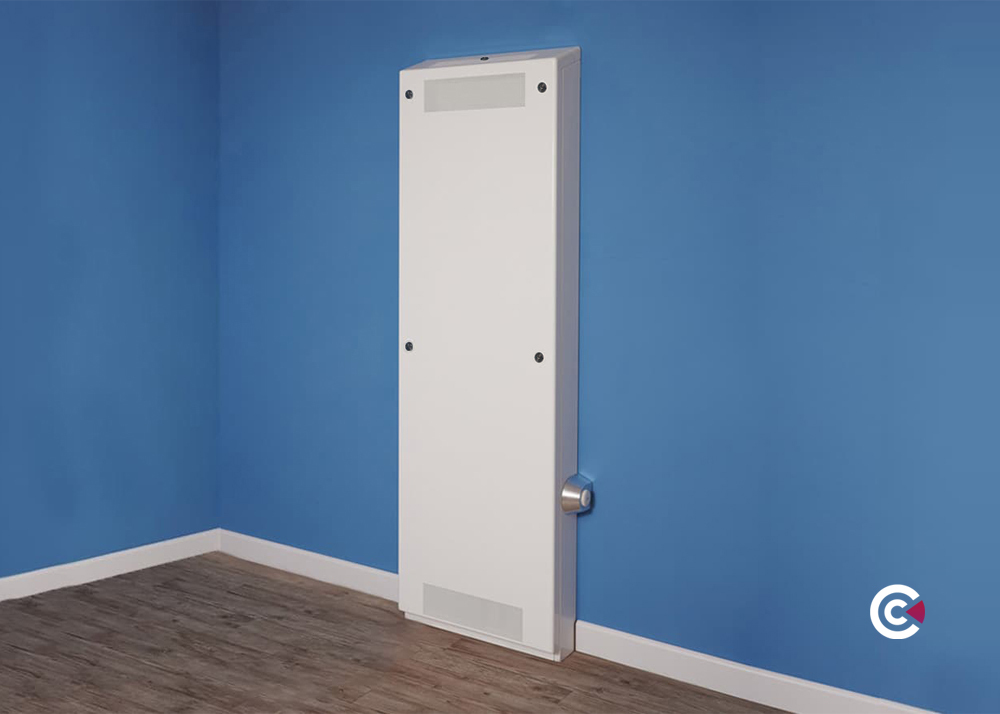

Sloping Top

The sloping top design allows for a vertical radiator to be installed where there is not enough width to install a conventional radiator. The sloping top design utilises all of the features of the Deepclean Extra design, with additional strengthening struts on the front face of the cover to help cope with demanding environments.

This design is best suited where the pipe work is entering from below the radiator or at low level.

Floor to Ceiling

Depending on the environment, pipe work layout or ceiling heights, the floor to ceiling design makes sure that all services are covered up.

The floor to ceiling design allows for the pipework to enter from the ceiling directly into the casing giving the designers and installers more flexibility when dealing with awkward spaces to fit a radiator on to.

The top collar allows for uneven floors and ceilings.

Additional strengthening struts in the front face of the door adds strength into the door to help cope with demanding environments.

Download Product Information
deepclean-extra-vertical-
deepclean-extra-vertical-slightly-open
deepclean-extra-vertical-open-
deepclean-extra-vertical-floor-to-ceiling
deepclean-extra-vertical-
deepclean-extra-vertical-slightly-open
deepclean-extra-vertical-open-
deepclean-extra-vertical-floor-to-ceiling

Key Features

Whether it’s the full drop down door or the IP3x grilles, the DeepClean Extra Radiator boasts numerous benefits to the user. Combined with its BioCote® anti-microbial technology and optional rotatory valve kits, these make for the perfect solution in hygiene control.

Radius edges and bullnose corners protect in the event of a slip or fall, and prevents edges being used for self harm.
Full drop down/removable door, allows full access for cleaning to maintain hygiene and heating efficiency in all environments.
An array of security fastenings which include Pin Hex and key locks can be used to ensure fast and simple access for staff but prevent unwanted opening by service users.
1.5-2mm Zintec Steel construction ensures robust performance in the most demanding of environments.
Magnelis Steel can be chosen for wet and humid environments such as ensuite bathrooms.
The IP3X rated grille, with 2mm holes at 4mm centres, prevents items being passed through the casing and reduces ligature points, whilst still allowing for ventilation to maximise heat output.
Full frame design so cover can be sealed to the wall around the full perimeter.
All wall and floor fixing points are located internally to protect against non-permitted access, removal or manipulation.
A tapered, precision engineered, thermostatic radiator valve shroud which reduces the opportunity for the TRV to be used as an anchor point.

Technical Data

Manufacture

  • 1.5mm Zintec steel
  • 10mm Radius edges / bullnose corners
  • Patented full height front access door with hinge (Pat. No. 2 410 544)
  • IP3x rated 2mm dia holes @ 4mm Centres in a triangular Pitch Formation Punched Grille
  • Cut-outs programmed into manufacture

Specification

Emitter
  • Vertical steel radiators
  • 6 Bar Max Operating Pressure
  • EN442 Tested and Certified
Valve Options Available
  • Internal TRV kit 9210-13
  • Remote sensing TRV kit 7463-41
  • External Back To Wall Anti-Ligature TRV kit 19352-41
  • Alternative valve patterns and sizes are available upon request
Finish
  • Polyester powder coated RAL 9003 as standard. Other colour finishes available
  • Patented BioCote® anti-microbial agent as standard
Fixings
  • All fixings internal
    8mm Pinhex security locks

Sizing & Heat Outputs

Sizing
  • Single Casing Lengths 400mm - 1100mm
  • Single Casing Heights 1900mm - 2300mm
  • Bespoke solutions available
Heat Outputs

Heat outputs to BS EN 442 Certification.
Outputs based on a mean radiator water temperature of 70°C and a room temperature of 20°C - Delta T 50°C
To achieve Delta T60 increase T50 figure by 20.5%

To calculate alternative Delta T requirements please refer to page 103 of the LST & Anti-Ligature Radiators & Guards brochure.

To convert BTU to Watts, multiply by 0.293. To convert Watts to BTU divide by 0.293

Optional Extras

  • Magnelis for wet rooms
  • Different guages of material available
  • Strengthening struts
  • Door cables

Standard Delivery

  • Standard delivery comprises radiator guard of choice, corresponding vertical radiators and the option of a 90degree Herz ½” valve kit (suitable for 15mm copper to copper connection on a two-pipe system)
  • Split delivery* to reduce the risk of radiator casings becoming damaged or lost on site, Contour offer split deliveries as standard on all LST radiators.
    Radiators and valves are delivered first then once the heating system is installed, tested and commissioned, casings are delivered. This virtually eliminates storage problems and the risk of on-site damage.

    *Additional carriage charges will apply for multiple phases

Colour Options Available

White

RAL 9003

Oyster White

RAL 1013

Tele Grey

RAL 7047

Mint Green

RAL 6029

Ultramarine

RAL 5002

Jet Black

RAL 9005

FAQ

What colour options are available for radiators and guards?

You have the full RAL colour chart to choose from, offering a colour spectrum of 1625 shades.

Contour covers come as standard in Ral 9003 with Biocote protection.

Common colours for Contour LST radiators are:

  • White (RAL 9003)
  • Oyster White (RAL 1013)
  • Tele Grey (RAL 7047)
  • Jet Black (RAL 9005)
  • Traffic Red (RAL 3020)
  • Mint Green (RAL 6029)
  • Zinc Yellow (RAL 1018)
  • Ultra Marine Blue (RAL 5002)
  • Blue Lilac (RAL 4005)
  • Azure Blue (RAL 5009)
