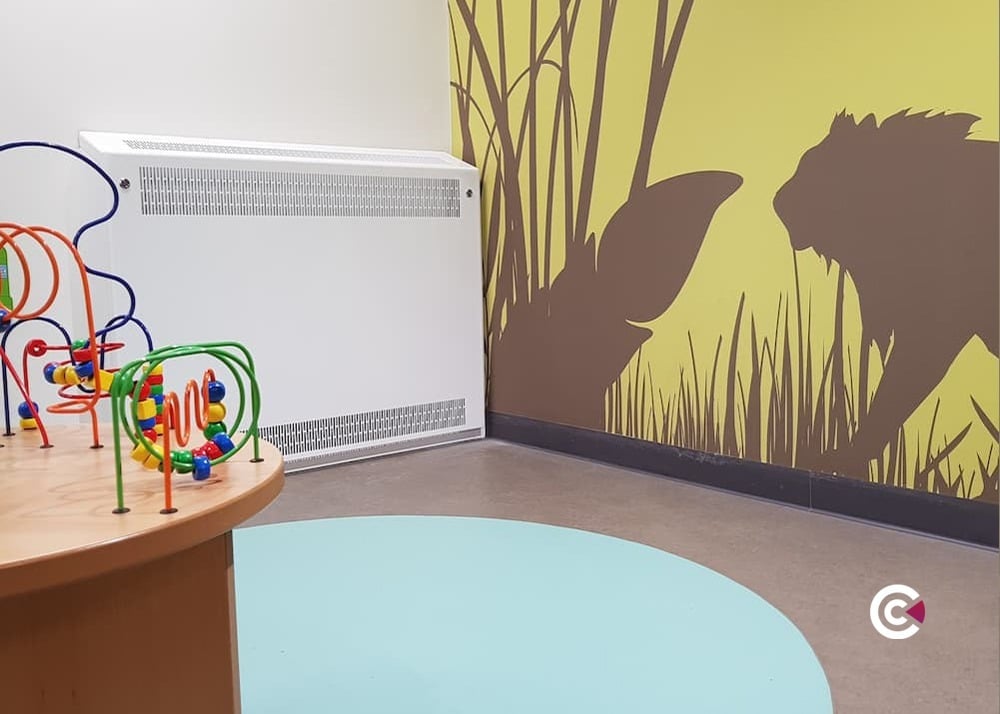

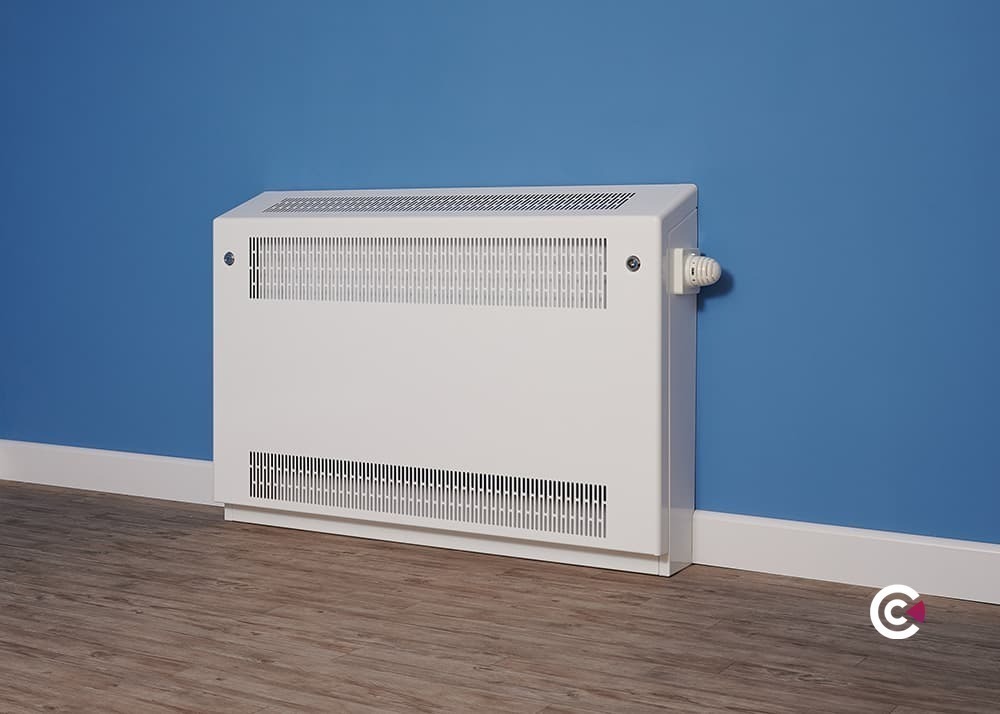

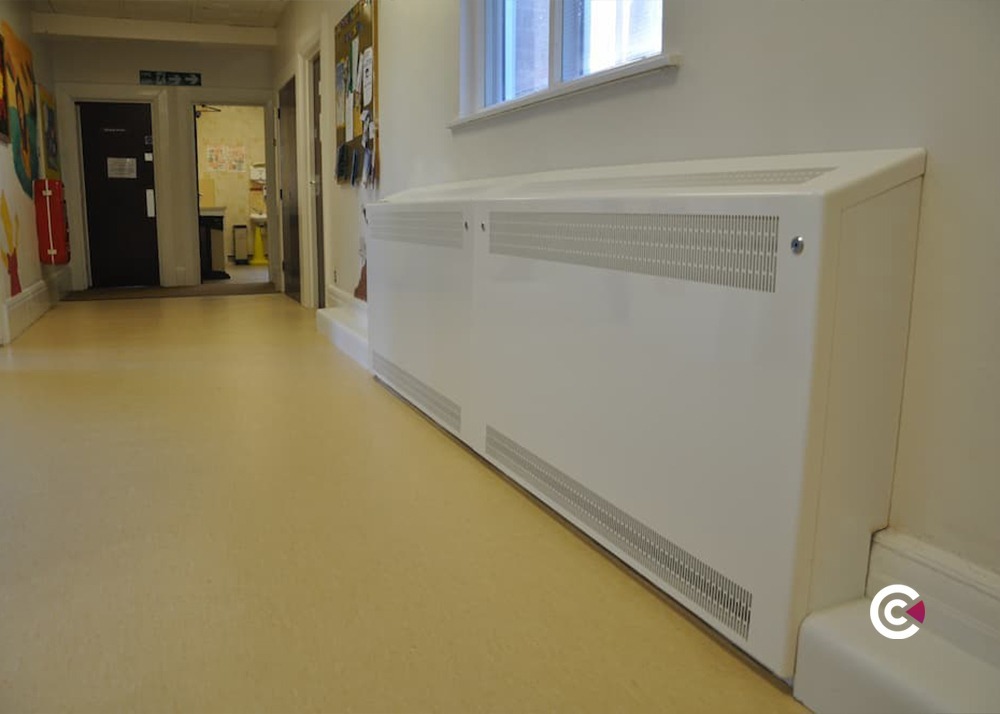

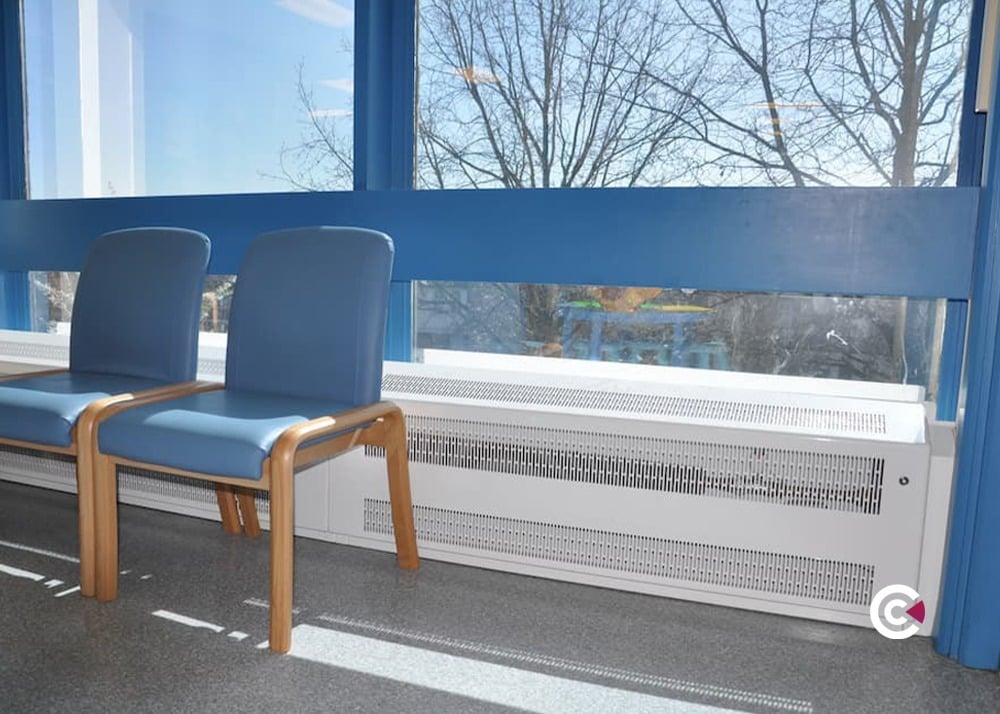

DeepClean - Radiator Cover - Floor Mounted - Sloping Top
All our radiator covers incorporate antimicrobial technology as standard to ensure hygiene and user protection. A revolutionary LST radiator that improves cleaning efficiency by allowing access to every internal and external surface. This option has robust fixings, ideal for high-traffic areas such as corridors. A sloping top is a hygienic option which minimises dust build-up. Great for schools as it stops the radiator from being used as a shelf or seat. We always recommend a sloping top with anti-ligature radiators.
Technical Data
Manufacture
- 1.5mm Zintec steel
- 10mm Radius edges / bullnose corners
- Patented full height front access door with hinge (Pat. No. 2 410 544)
- 5.5mm Punched grille
- Cut-outs programmed into manufacture
Specification
Emitter
- Compact steel panel radiators. EN 442 tested and certified
- Operating pressure 10 bar -(tested to 13 bar/188PSI)
Valve Options Available
- Internal TRV kit 9210-13
- External TRV kit 9231-41
- Remote sensing TRV kit 7463-41
- Anti-Ligature TRV kit 19352-41
- Rotarad rotating valve kit:
RR04 Single Fin/ RR05 Half Fin/ RR06 Double Fin (not suitable for Triple Fin radiators) - Alternative valve patterns and sizes are available upon request
Finish
- Polyester powder coated RAL 9003 as standard. Other colour finishes available
- Patented BioCote® anti-microbial agent as standard
Fixings
- All fixings internal
- 6mm Allen key door locks as standard
- Other secure options available
Sizing & Heat Outputs
Sizing
- Single casing length 600mm to 2000mm
- Single casing height 550mm to 1150mm (Type 33 from 450mm)
- Lengths over 2000mm can be achieved but will be modular design so some assembly required on site
- Bespoke solutions available
Heat Outputs
Heat outputs to BS EN 442 Certification.
Outputs based on a mean radiator water temperature of 70°C and a room temperature of 20°C - Delta T 50°C
To achieve Delta T60 increase T50 figure by 20.5%
To calculate alternative Delta T requirements please refer to page 103 of the LST & Anti-Ligature Radiators & Guards brochure.
To convert BTU to Watts, multiply by 0.293. To convert Watts to BTU divide by 0.293
Downloads
Optional Extras
- Magnelis for wet rooms
- Different guages of material available
- Strengthening struts
- Door cables
Standard Delivery
- Standard delivery comprises radiator guard of choice, corresponding Compact emitter (Single Fin, Half Fin, Double Fin and Triple Fin as specified) and the option of a 90 degree Herz ½” valve kit (suitable for 15mm copper to copper connection on a two-pipe system)
- An optional Rotarad rotary valve is available (not suitable for Triple Fin radiators)
- Split delivery* to reduce the risk of radiator casings becoming damaged or lost on site, Contour offer split deliveries as standard on all LST radiators. Radiators and valves are delivered first then once the heating system is installed, tested and commissioned; casings are delivered. This virtually eliminates storage problems and the risk of on-site damage.
*Additional carriage charges will apply for multiple phases
Colour Options Available
White
RAL 9003
Oyster White
RAL 1013
Tele Grey
RAL 7047
Mint Green
RAL 6029
Ultramarine
RAL 5002
Jet Black
RAL 9005
FAQ
What colour options are available for radiators and guards?
You have the full RAL colour chart to choose from, offering a colour spectrum of 1625 shades.
Contour covers come as standard in Ral 9003 with Biocote protection.
Common colours for Contour LST radiators are:
- White (RAL 9003)
- Oyster White (RAL 1013)
- Tele Grey (RAL 7047)
- Jet Black (RAL 9005)
- Traffic Red (RAL 3020)
- Mint Green (RAL 6029)
- Zinc Yellow (RAL 1018)
- Ultra Marine Blue (RAL 5002)
- Blue Lilac (RAL 4005)
- Azure Blue (RAL 5009)
What materials are Contour radiator covers made from?
Contour radiator covers are made from mild steel for general purposes.
Specifically, we use Zintec coated mild steel. Standard material thickness is 1.5mm.
For heavy-duty applications we recommend 2mm thick mild steel to provide additional strength.
What is the shortest and longest radiator cover you can do?
We're extremely flexible when it comes to the length of the radiator cover.
We have manufactured guards as short as 300mm long before, and as long as 20 + Meters before.
How much heat reduction do your radiator guards produce?
Standard Covers have a 10% reduction in heat output; Anti-ligature covers have a 20% reduction in heat output.
Standard Covers have a 10% reduction in heat output; Anti-ligature covers have a 20% reduction in heat output.
