DeepClean Extra Anti-ligature Radiators
Anti-ligature heating for mental health wards, SEN and SEMH schools, custody and remand units. DeepClean Extra designs out ligature and tamper points, and keeps the easy-clean hinged door.

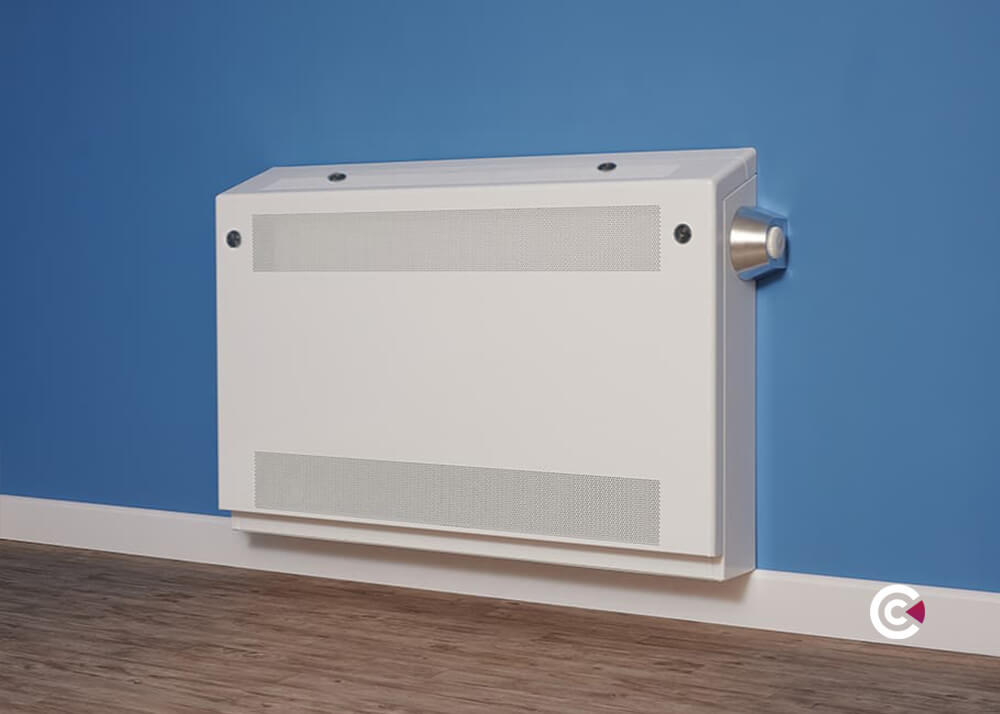

Sloped Top · Wall Mounted
DeepClean Extra lifted off the floor so cleaners can reach underneath, with a sloping top that sheds dust and can't be used as a shelf or seat.
- Sitting on pipe boxing: Wall mounting is recommended where the unit sits on pipe boxing.
- Constant cleaning: Lifted off the floor, so cleaners can reach underneath.

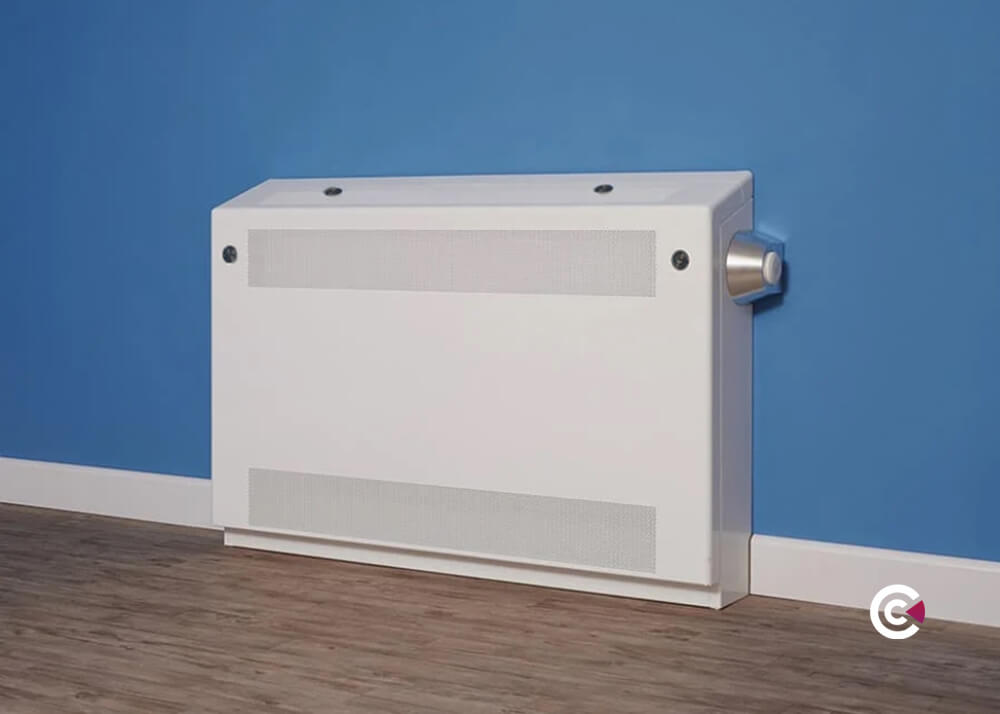

Sloped Top · Floor Mounted
DeepClean Extra standing on the floor for a solid, closed-in base, with a sloping top that sheds dust and can't be used as a seat.
- Floor standing: A solid base with no gap underneath for items to be pushed into.
- Less dust, no shelf: The sloping top minimises dust and stops it being used as a shelf or seat.

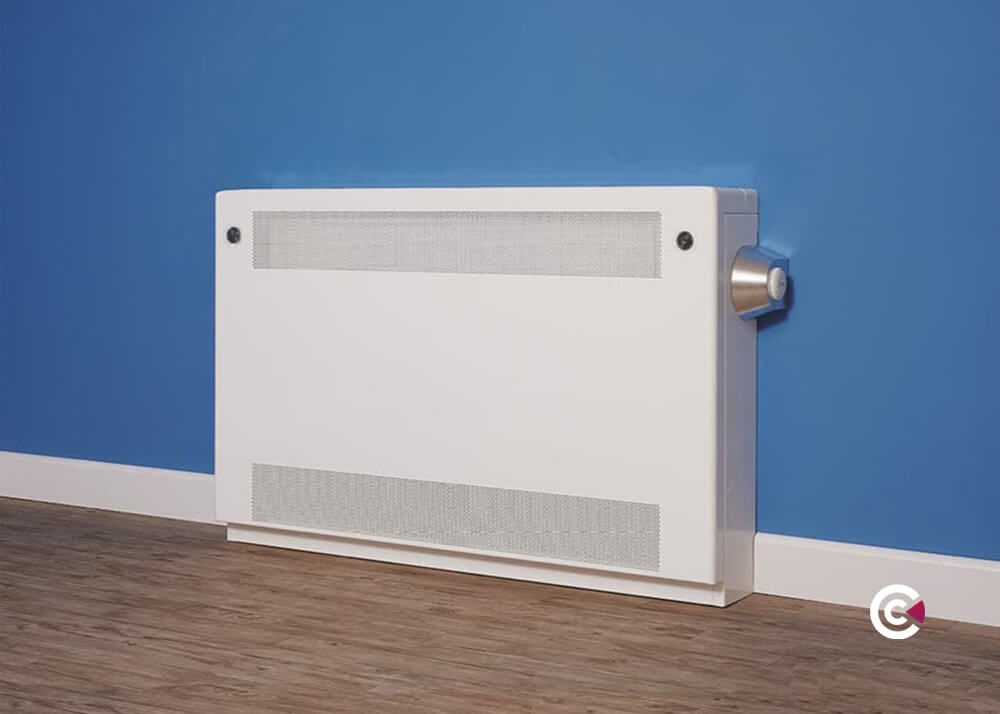

Flat Top · Floor Mounted
DeepClean Extra standing on the floor for a solid base, with a neat flat top.
- Floor standing: Stands on the floor rather than hanging from the wall.
- Where walls can't take the load: Useful on partition walls or where wall fixing is limited.

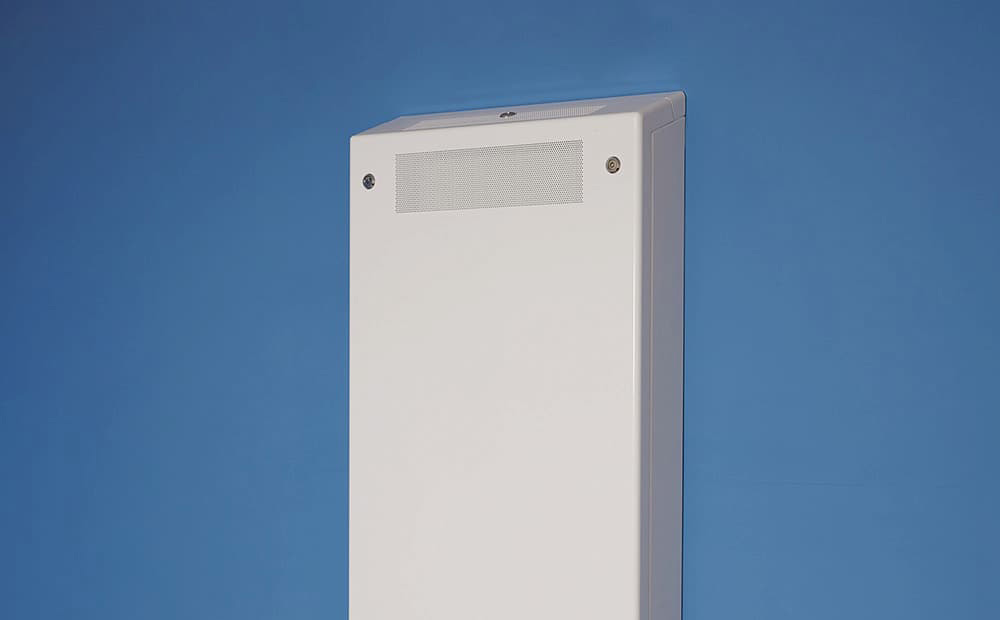

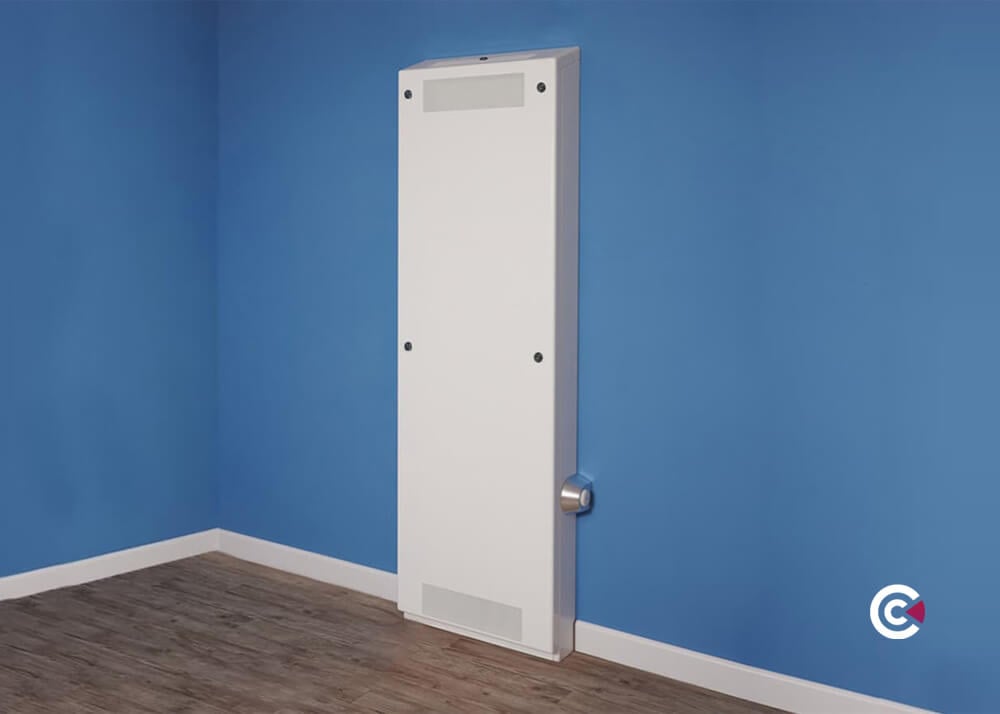

Vertical
DeepClean Extra in a tall, narrow format for rooms where wall length is limited.
- Limited wall space: A vertical format works where there isn't room for a long horizontal unit.
- Same easy access: The same full-height access door as the rest of the range.

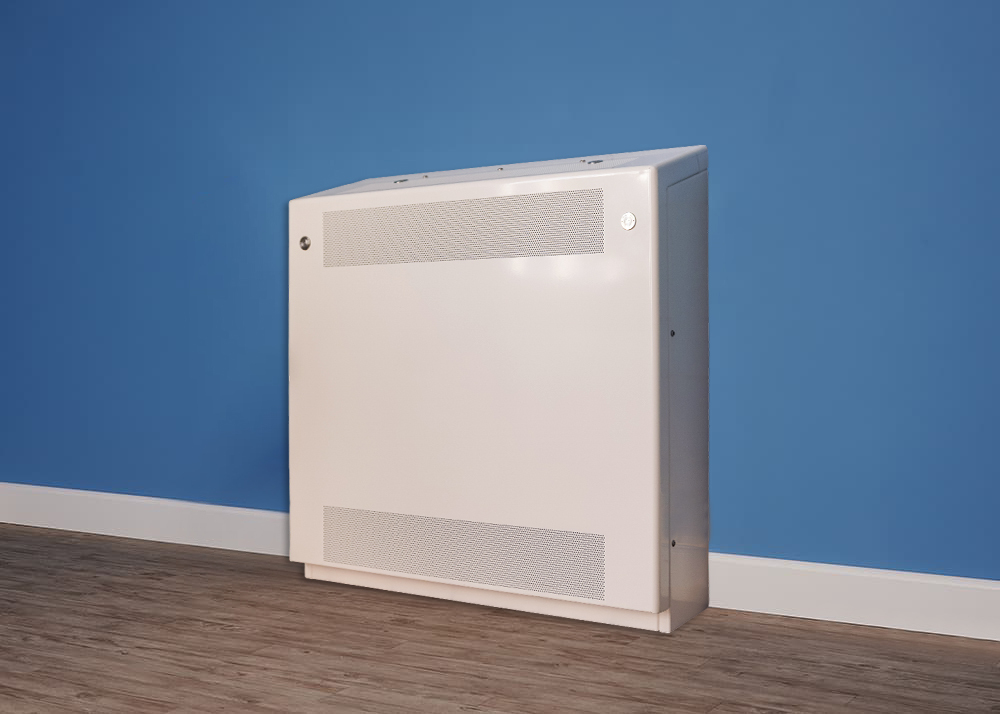

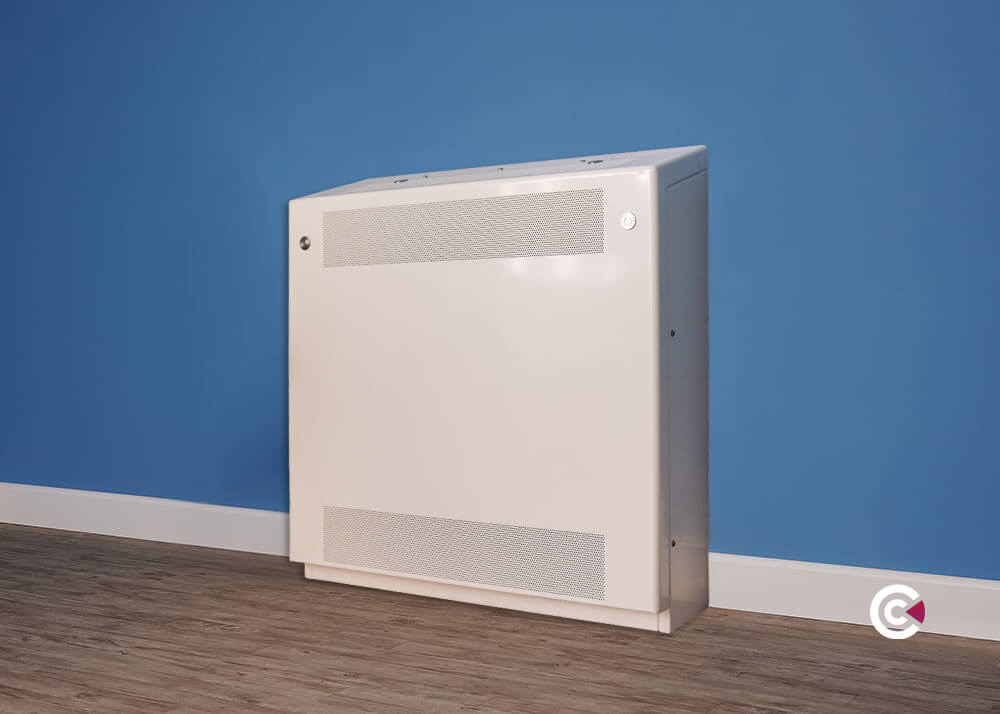

Triple Fin
DeepClean Extra built around a Triple Fin (Type 33) radiator for rooms that need the most heat from the same footprint.
- Higher heat output: Triple Fin (Type 33) radiators give the most output in the range.
- Valve note: Rotarad rotating valve kits are not suitable for Triple Fin radiators.
Every Fixture on a Secure Ward Is Under Scrutiny
Open grilles, exposed valves and loose fixings can all become ligature or tamper points. DeepClean Extra removes them, so you can heat the room safely and pass inspection with confidence.

Built for Safety, Designed for Real Buildings
IP3X-tested grilles
2mm holes at 4mm centres, tested by a UKAS-accredited lab to IP3X (BS EN 60529).
Anti-ligature TRV shroud
A CNC aluminium shroud protects the valve and makes it hard to tie anything around it.
Full-height hinged door
The patented door folds down so one person can clean every surface.
10mm radius edges
Rounded edges and bullnose corners throughout.
Security fixings
Internal fixings and security fasteners stop unauthorised access.
BioCote® as standard
Antimicrobial protection in the paint finish.
Key Specifications
Technical Data
- 1.5mm Zintec steel
- 10mm radius edges / bullnose corners
- Patented full-height front access door with hinge (Pat. No. 2 410 544)
- IP3X-rated 2mm holes at 4mm centres, triangular pitch
- Cut-outs programmed into manufacture
- Anti-ligature base plate to underside of cover
- Compact steel panel radiators, EN 442 tested and certified
- Operating pressure 10 bar (tested to 13 bar / 188 PSI)
- Anti-ligature TRV kits with CNC aluminium shroud
- Polyester powder coated RAL 9003 as standard; other colours available
- BioCote® antimicrobial protection as standard
- Single casing lengths 600mm to 2000mm (longer runs in a modular design)
- Single casing heights 550mm to 1150mm
- Radiator types: Single Fin (Type 11), Half Fin (Type 12), Double Fin (Type 22), Triple Fin (Type 33)
- Heat outputs to BS EN 442 (mean water 70°C, room 20°C, Delta T 50). Output tables as current site
- Magnelis steel for wet rooms
- Different material gauges
- Strengthening struts
- Door cables
- Anti-ligature TRV kits with CNC aluminium shroud
- Standard delivery: your chosen guard with the corresponding compact emitter
- Typical lead time 15 working days from drawing approval (check at time of order)
- Split deliveries to suit phased or live-site programmes
- Installation available through our accredited installer network
- RAL 9003 white with BioCote® as standard
- Any colour from the full RAL chart (1,625 shades)
Colours on screen are a guide only. Ask for a physical sample to match exactly.
Downloads 2
New documents can be added here at any time from HubSpot.
Heat output tables 15
Heat outputs to BS EN 442. ΔT20, ΔT24 and ΔT30 for each version, grouped by version.
Frequently asked questions 4
What makes DeepClean Extra anti-ligature?
IP3X-tested small-hole grilles, an anti-ligature TRV shroud, rounded edges, an anti-ligature base plate and security fixings, all designed to reduce ligature and tamper points.
Is there an NHS standard for anti-ligature grilles?
No. HBN 03-01 expects fixtures to reduce ligature risk but doesn't set a hole size. Our 2mm at 4mm pattern follows the Home Office custody guidance and is tested to IP3X.
Can service users control the temperature?
Yes. Anti-ligature TRV kits let them adjust their room temperature safely.
Does it come with antimicrobial protection?
Yes. BioCote® antimicrobial protection is built into the powder-coat finish as standard, helping reduce bacteria on the surface.
Trusted in These Sectors
From Drawings to Delivery
Send us your drawings
Or a room schedule, so we can see what you need.
Free survey and spec
We check every room and agree sizes, cut-outs and finishes with you.
Made and delivered
Manufactured in the Midlands and delivered on time, with installation if you need it.
